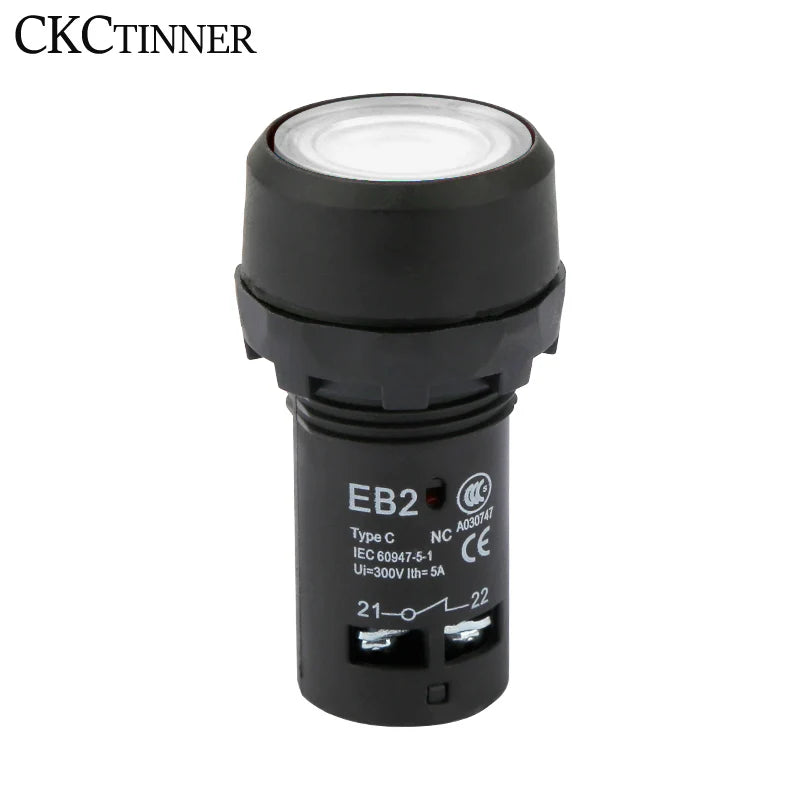

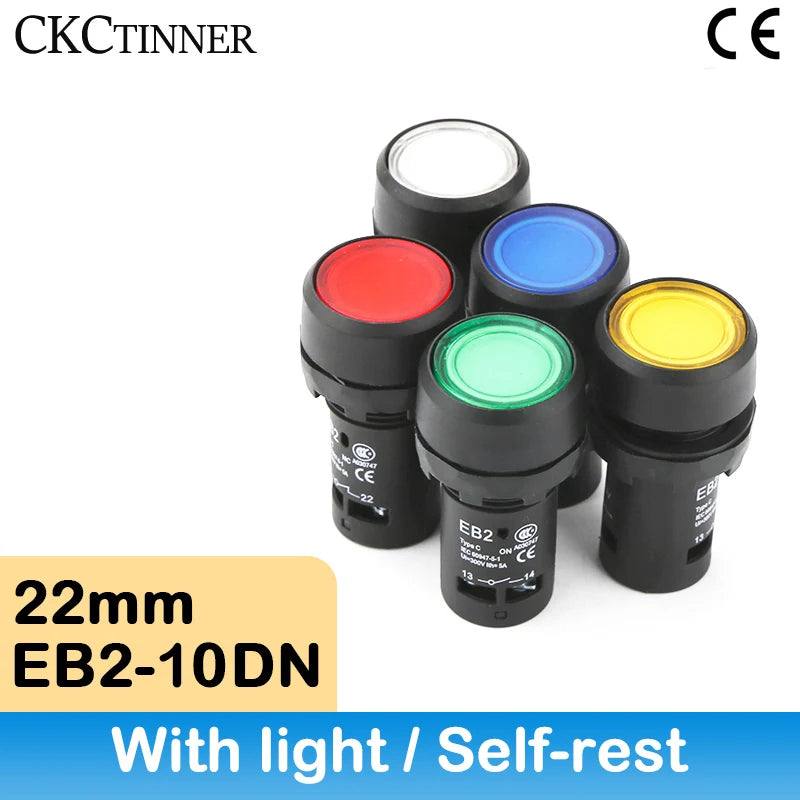

22mm Momentary Push Button Switch with Pilot Light – EB2-10DN
The CKCTINNER EB2-10DN Momentary Push Button Switch is a compact, reliable ON-OFF self-resetting switch designed for a wide range of industrial, commercial, and DIY control panel applications. Featuring a built-in pilot light and silver contacts, this switch delivers crisp, dependable actuation every time you press it — and springs back automatically when released.
Key Features
- Self-Resetting (Momentary) Action: Automatically returns to its original position upon release — ideal for push-to-activate controls.
- Built-In Pilot Light: Integrated indicator light for clear visual status confirmation at a glance.
- Silver Contacts: High-conductivity silver contact material ensures long service life and consistent electrical performance.
- 22mm Panel Cutout: Standard 22mm circular hole size fits most industrial and control panel enclosures with ease.

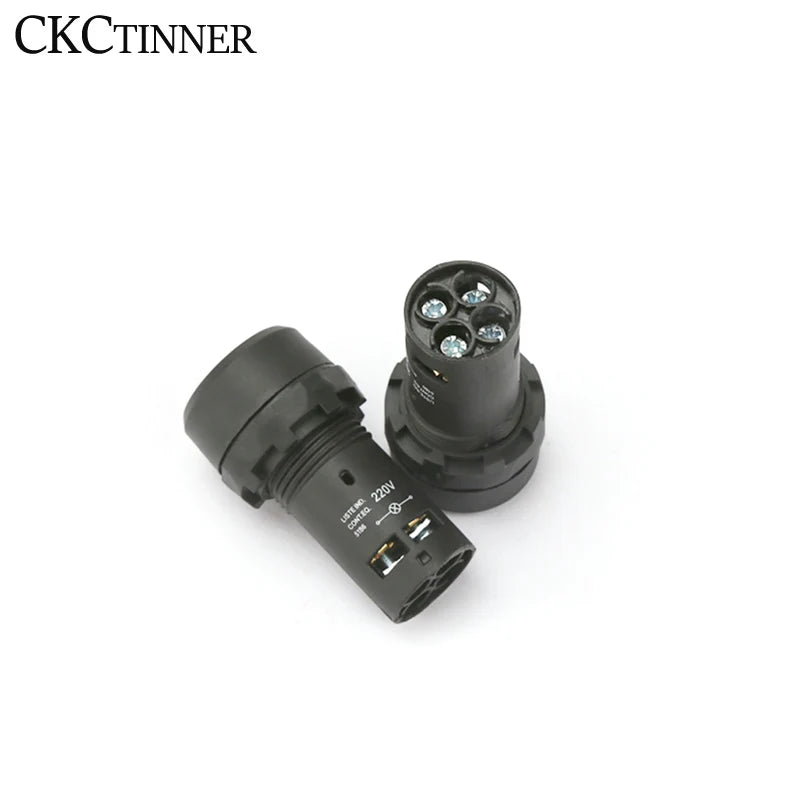

- 4-Screw Terminal (Four-Leg Cylinder): Secure, straightforward wiring with four screw terminals for robust connections.
- Normally Open / Normally Closed: Dual contact form offers flexible circuit configuration options.
- Rated Current: 5A for safe and reliable operation across typical control circuit loads.
- CE Certified: Meets CE safety and compliance standards.

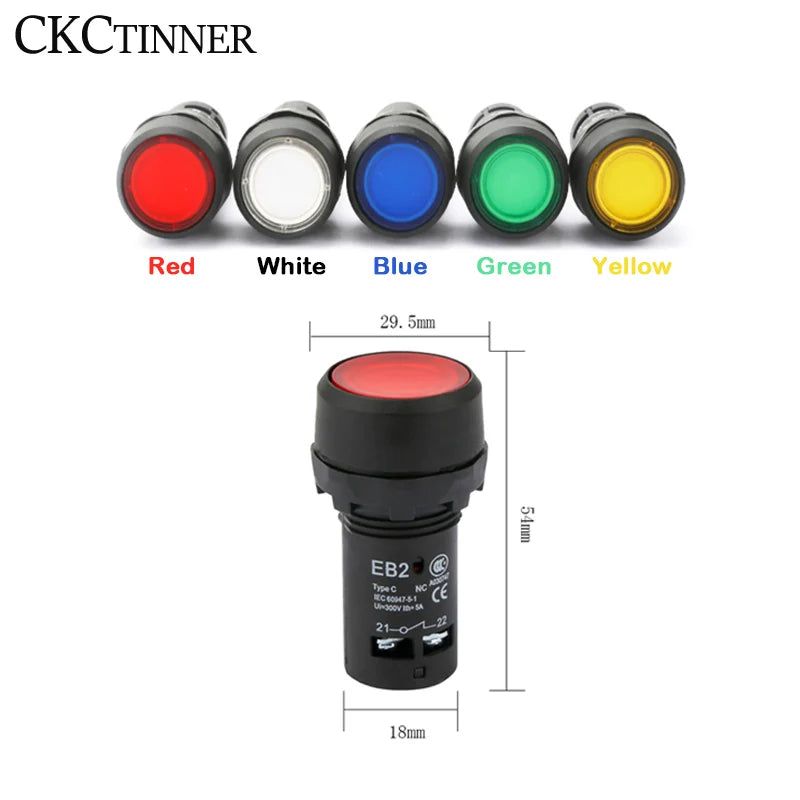

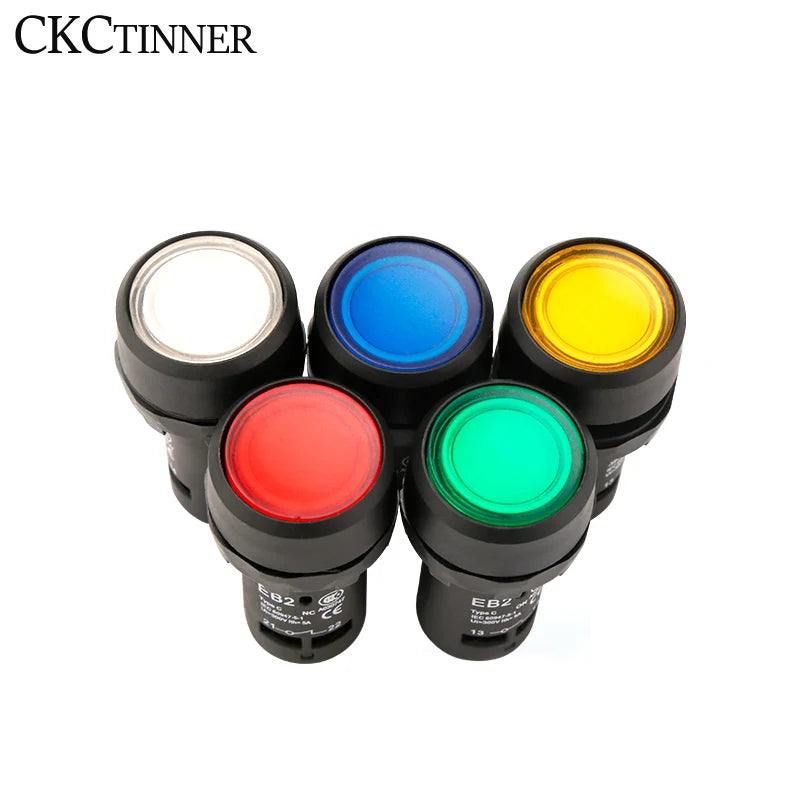

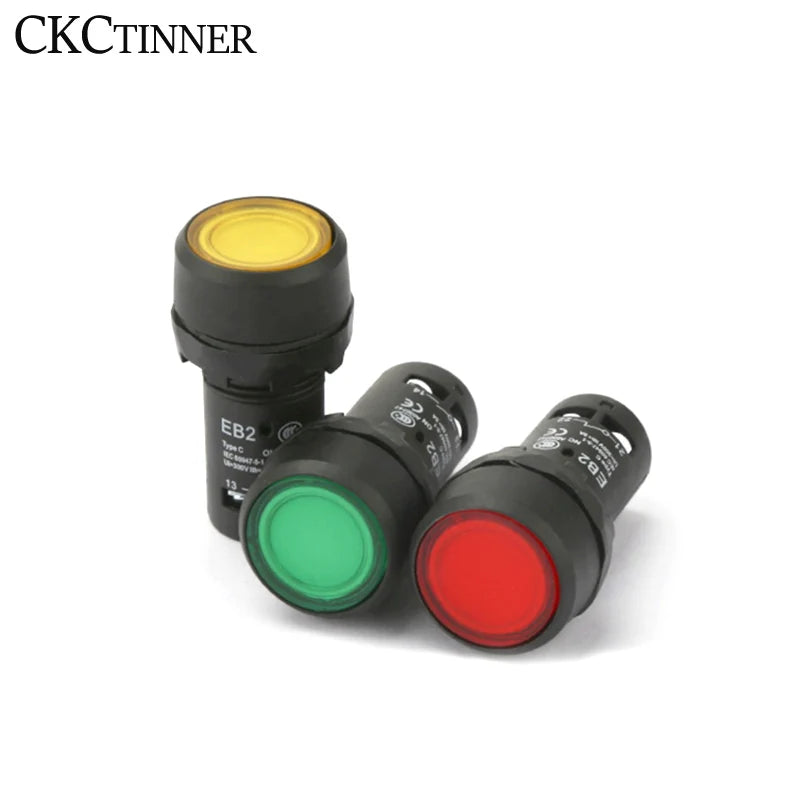

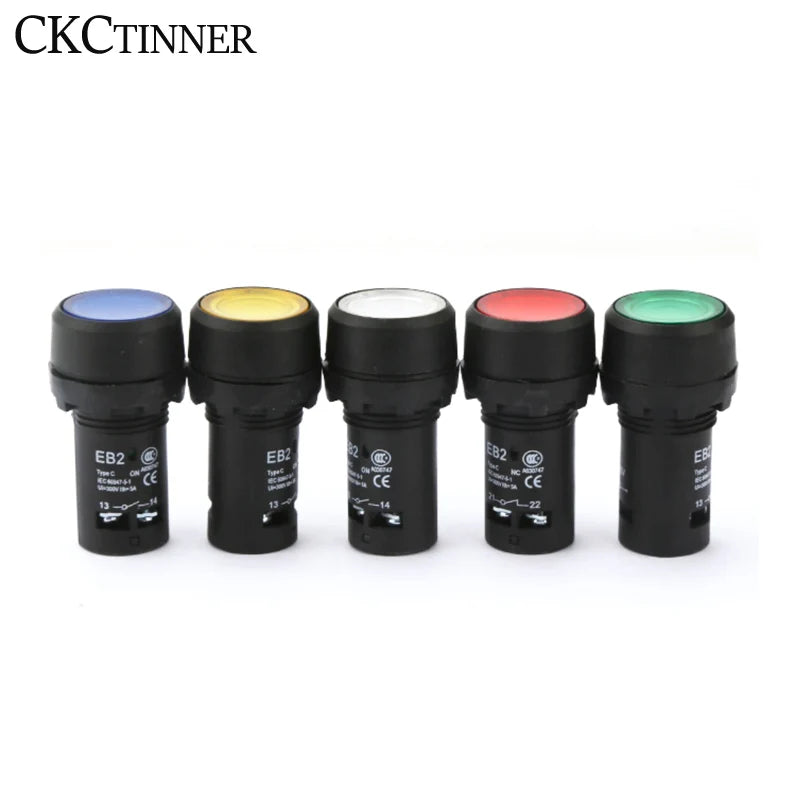

- Multiple Color Options: Available in Red, Green, Yellow, Blue, and White to match your panel layout or color-coding system.
- Compact Flat-Round Design: Low-profile, space-saving form factor fits neatly on control panels without bulk.
- Plastic Housing: Lightweight and durable construction.
Specifications
| Model | EB2-10DN |
| Brand | CKCTINNER |
| Panel Cutout | 22mm (Circular) |
| Operation Type | Momentary / Self-Resetting |
| Contact Form | Normally Open / Normally Closed |
| Contact Material | Silver |
| Rated Current | 5A |
| Terminals | 4 Screw Terminals |
| Material | Plastic |
| Certification | CE |
| Available Colors | Red, Green, Yellow, Blue, White |
| Country of Origin | Made in China |
Ideal For
- Industrial control panels and automation systems
- Machinery start/stop controls
- DIY electronics and hobbyist projects
- Home automation control boxes
- Electrical enclosures and switchboards
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does "momentary self-resetting" mean for the EB2-10DN push button switch?
A: A momentary self-resetting switch only completes (or breaks) the circuit while the button is physically held down. As soon as you release it, an internal spring automatically returns the button to its original resting position, breaking the circuit again. This is ideal for applications like start buttons, signal triggers, or any control where you want the action to last only as long as pressure is applied.
Q: What panel hole size is required to install this push button switch?
A: The EB2-10DN requires a standard 22mm circular panel cutout. This is one of the most common sizes used in industrial control panels, making it compatible with a wide range of enclosures and mounting plates.
Q: Does this switch work for both normally open (NO) and normally closed (NC) configurations?
A: Yes! The EB2-10DN supports both normally open and normally closed contact forms. This gives you the flexibility to wire it into your circuit in either configuration depending on your specific control application.
Q: How many wires can I connect, and how are they secured?
A: This switch features four screw terminals (four-leg cylinder design), allowing secure and easy wiring for both NO and NC contact connections. Simply tighten the screws to lock your wires firmly in place.
