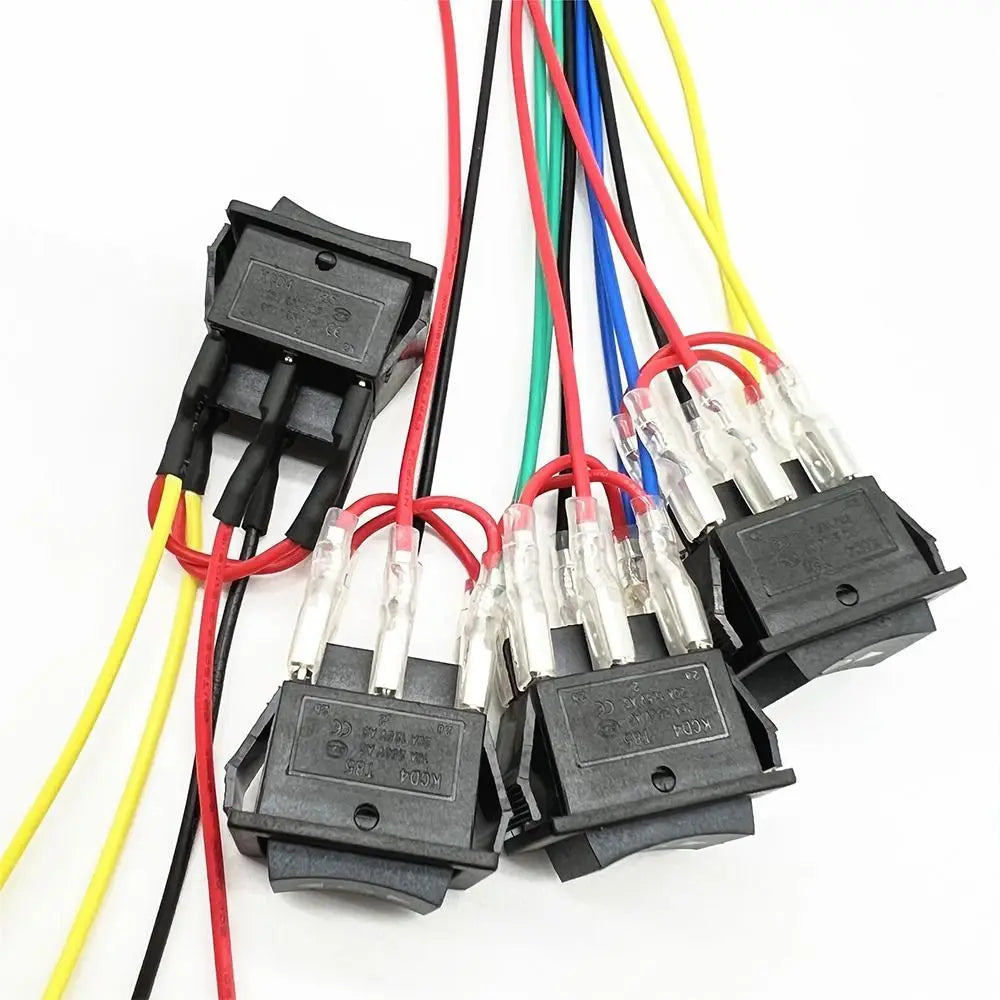

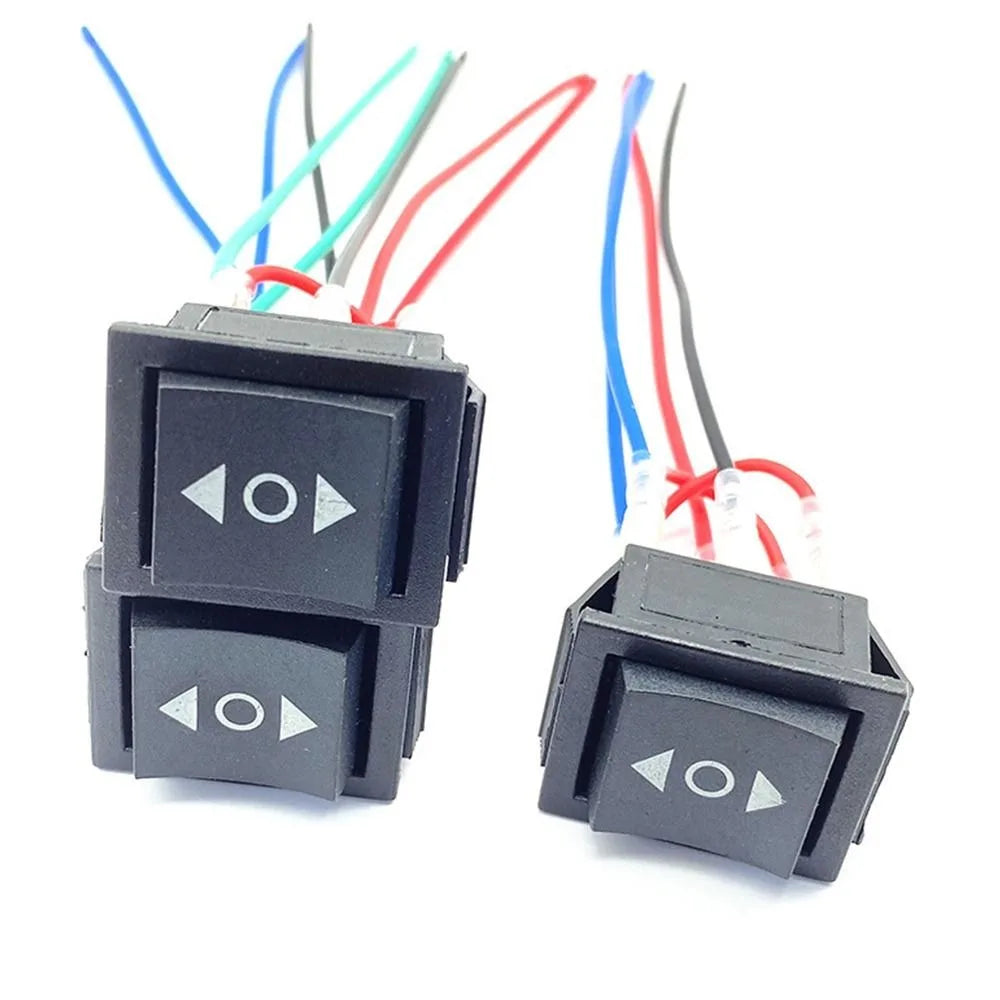

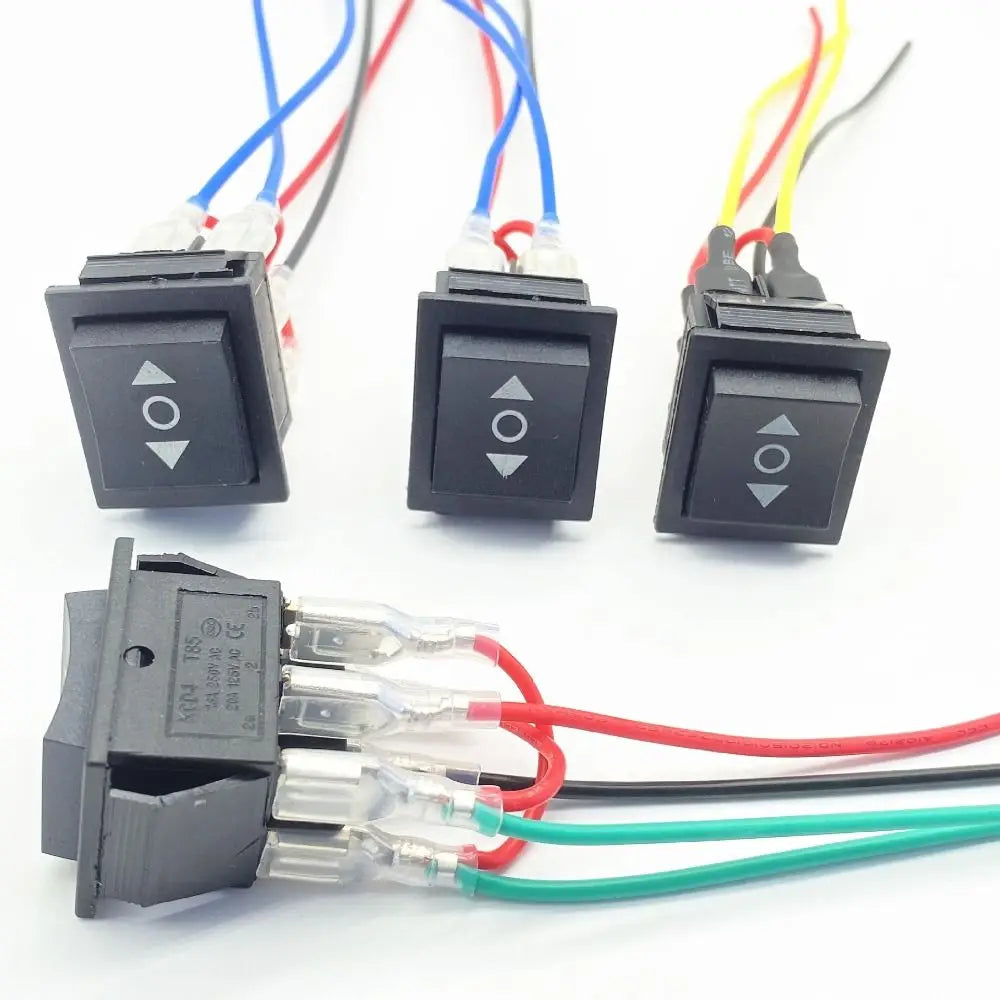

220V 10A Momentary Polarity Reversing Rocker Switch – 6 Pin, 3 Position (On)-Off-(On)
Take precise control of your motors and electrical circuits with this Double Pole Double Throw (DPDT) Momentary Polarity Reversing Rocker Switch. Designed for a wide range of DIY and professional applications, this 3-position snap-in switch features an automatic reset mechanism — returning to the OFF position the moment you release it. With a 220V AC / 10A rating and robust plastic-and-metal construction, it's built to handle demanding environments reliably.
Key Features
- 3-Position Action: (On)-Off-(On) design with momentary switching and automatic reset for safe, hands-free operation
- Double Pole Double Throw (DPDT): 6-pin terminal layout enables full motor polarity reversal with a single switch
- Rated Specs: AC 220V / 10A, Contact Resistance: 50mΩ Max — suitable for a broad range of power control needs
- Compact Snap-In Design: Dimensions: 25 × 31 × 33 mm (W×L×H); Wire lead length: 200 mm (7.87 in) — easy to install in standard panel cutouts
- Durable Materials: High-quality plastic housing with metal contacts for long-lasting performance
- Wide Compatibility: Ideal for boats, trucks, panel DIY controls, lights, generators, coffee pots, water dispensers, speakers, TVs, vacuum cleaners, and breadboard power control projects
Product Specifications
| Switch Type | DPDT Momentary (On)-Off-(On) |
| Rated Voltage | AC 220V |
| Rated Current | 10A |
| Number of Pins | 6 |
| Contact Resistance | 50mΩ Max |
| Material | Plastic + Metal |
| Size | 25 × 31 × 33 mm (W×L×H) |
| Wire Lead Length | 200 mm / 7.87 in |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × DPDT Momentary Polarity Reversing Rocker Switch (6 Pin)
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does a DPDT momentary polarity reversing rocker switch do?
A: A Double Pole Double Throw (DPDT) momentary polarity reversing rocker switch allows you to instantly reverse the direction of a DC motor or change the polarity of a circuit by toggling between two active positions. The "momentary" action means the switch only stays in the ON position while held — it automatically resets to the center OFF position when released, making it ideal for precise, controlled operation.
Q: What applications is this 6-pin rocker switch compatible with?
A: This 6-pin 3-position rocker switch is compatible with a wide variety of applications including boat and truck panel controls, DIY electronics projects, breadboard power control, motor direction control, lights, generators, water dispensers, speakers, and household appliances. It is rated for AC 220V / 10A, making it suitable for both low-voltage DIY work and higher-voltage home appliance circuits.
Q: How do I install this polarity reversing switch in a panel?
A: The switch features a snap-in design that fits standard panel cutouts measuring approximately 25 × 31 mm. Simply connect the 6 terminals according to your DPDT wiring diagram — the included 200 mm wire leads make installation straightforward. Always ensure the circuit is de-energized before wiring and that your application's voltage and current do not exceed AC 220V / 10A.
