2000VDC Industrial-Grade DC Resistance Box
Achieve precise, repeatable resistance values in your DC circuits with this compact, sealed variable resistor box. Engineered for industrial applications, instrument calibration, circuit testing, and teaching labs, this resistance box delivers a reliable standard resistance reference up to 2000VDC — all in a rugged ABS enclosure that fits easily on any workbench.
Why Choose This Resistance Box?
- High-Voltage Rating: Supports up to 2000VDC between binding posts — suitable for demanding industrial and high-voltage testing environments.
- Multiple Models Available: Choose from 1M, 10M, 100M, or 1000M configurations to match your specific circuit requirements.
- Precision Accuracy: ±2% resistance accuracy at 23°C ±5°C ensures dependable calibration and circuit verification results.
- Compact & Sealed Design: Small sealed enclosure (64 × 58 × 35.5 mm, excluding binding posts) protects internal resistor elements and simplifies bench integration.
- Wide Operating Range: Functions reliably from -40°C to 60°C at up to 80% RH — ideal for field or lab conditions.

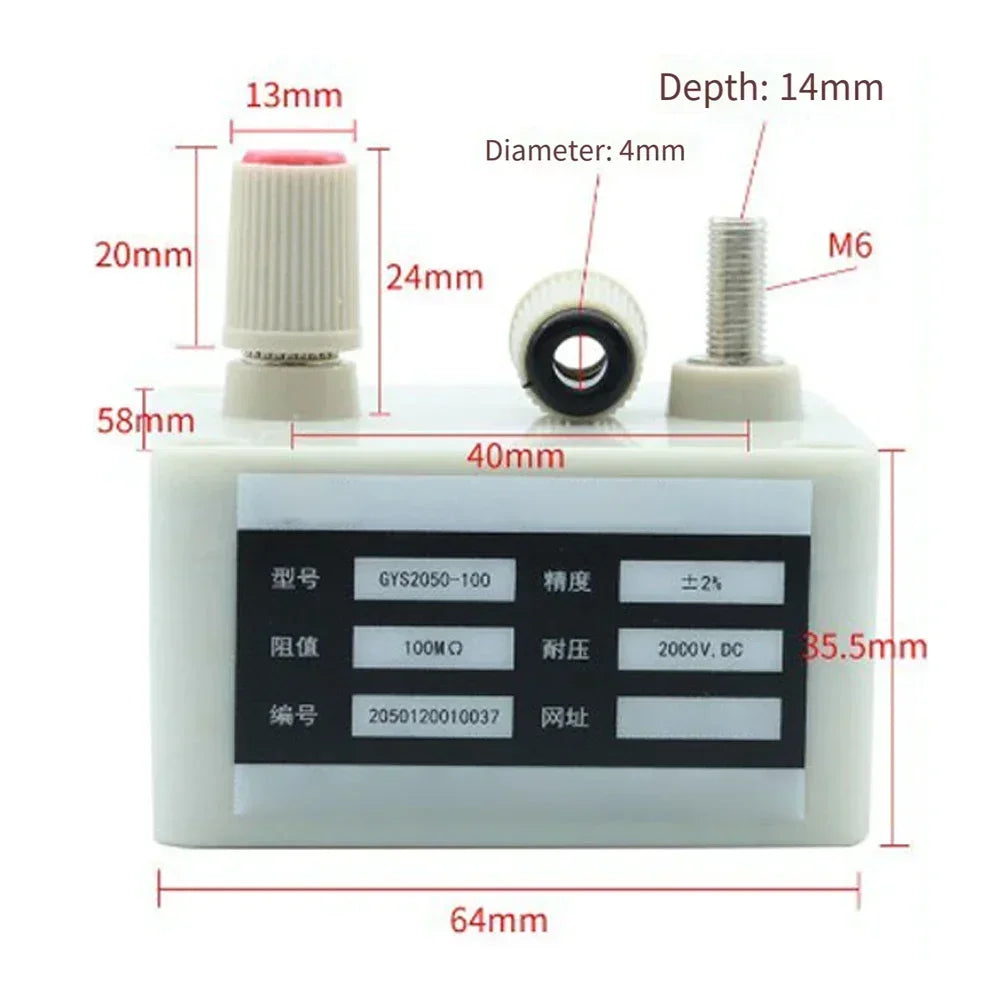

- Standard Binding Posts: Ø13mm × 24mm posts with 40mm spacing and Ø4mm socket / M6 stud connections for easy integration with standard test leads.
Key Applications
- Circuit Testing & Debugging: Simulate known resistance loads to verify DC power supply performance, drive circuits, and protection circuits. Adjust resistance to change load current (I = U/R) and confirm output voltage stability under rated load.
- Load Simulation: Substitute for actual loads — motors, sensors, or other devices — during pre-installation testing of control and drive circuits.
- Fault Diagnosis: Compare theoretical vs. measured values using a known resistance to pinpoint abnormal load conditions such as short circuits, open circuits, or resistance drift.
- Instrument Calibration: Serve as a traceable standard resistance source for calibrating multimeters, ohmmeters, DC power supplies, and resistance testers.
- Educational Experiments: Ideal for university labs and electronics teaching environments requiring accurate, adjustable resistance references.
Specifications
| Models | 1M, 10M, 100M, 1000M |
| Rated Resistance | 100MΩ |
| Resistance Accuracy | ±2% (at 23°C ±5°C) |
| Maximum Voltage | 2000VDC (between binding posts) |
| Rated Power | 0.25W |
| Material | ABS |
| Color | White |
| Dimensions (L×W×H) | 64mm × 58mm × 35.5mm (excluding binding posts) |
| Binding Post Dimensions | Ø13mm × 24mm, 40mm spacing |
| Electrical Connection | Socket: Ø4mm × 17mm; Stud: M6 |
| Operating Conditions | -40°C to 60°C, ≤80% RH |
| Battery Required | No |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × 2000VDC Industrial-Grade Resistor Box
Notes
- Actual product color may vary slightly from images due to monitor brightness and ambient lighting.
- Please allow for minor manual measurement deviations in the listed dimensions.
