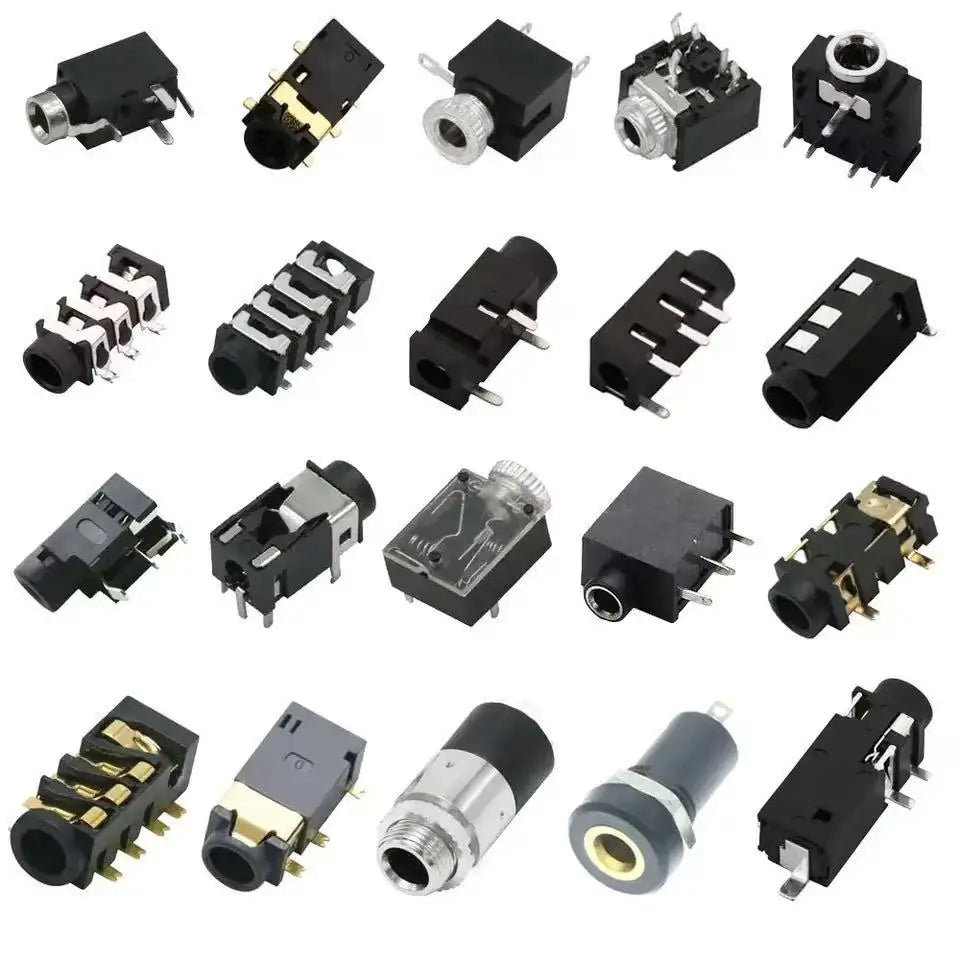

2.5mm & 3.5mm Audio Jack Female Connector – PCB DIP & SMD Headphone Socket
Whether you're prototyping a custom audio circuit, repairing a device, or building your next electronics project, these PCB-mount audio jack sockets deliver reliable signal connectivity in a compact, easy-to-solder form factor. Available in both 2.5mm and 3.5mm formats across multiple popular series — PJ-242, PJ-301M, PJ-313E, PJ-320D, PJ-327A, PJ-391, PJ-392, and PJ-393 — you'll find exactly the footprint you need.
Key Features
- Dual Size Options: Compatible with both 2.5mm and 3.5mm audio plug standards for maximum versatility.

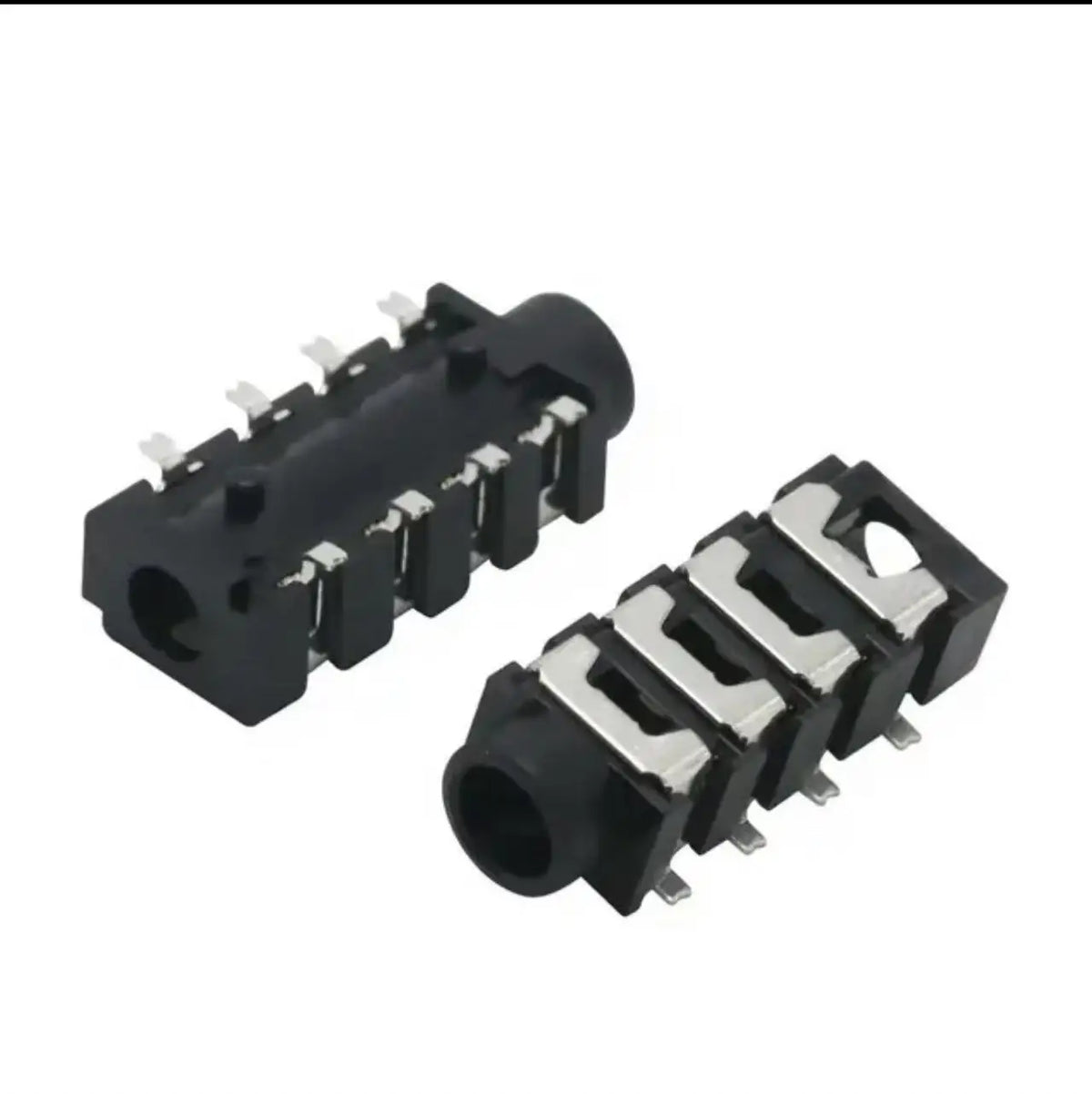

- Multiple Series Available: PJ-242, PJ-301M, PJ-313E, PJ-320D, PJ-327A, PJ-391, PJ-392, PJ-393 — choose the exact footprint for your PCB layout.
- Through-Hole (DIP) & SMD Mounting: Suitable for hand-soldering prototypes or automated SMT assembly lines.
- Headphone & Audio Jack Socket: Ideal for headphone outputs, microphone inputs, line-in/line-out circuits, and audio switching applications.
- Durable Construction: Robust contacts ensure a secure, low-resistance connection for consistent audio performance.
- Breadboard & PCB Friendly: Standard pin spacing makes integration into custom boards and development platforms straightforward.
Specifications
- Connector Sizes: 2.5mm / 3.5mm
- Mounting Types: DIP (Through-Hole) / SMD
- Available Series: PJ-242, PJ-301M, PJ-313E, PJ-320D, PJ-327A, PJ-391, PJ-392, PJ-393
- Application: Headphone jack, audio socket, PCB audio circuit
- High-Concern Chemicals: None
- Made in Mainland China
Who Is This For?
These audio jack connectors are perfect for electronics hobbyists, PCB designers, repair technicians, and professional engineers who need a reliable headphone or auxiliary audio socket. Use them in DIY amplifiers, custom audio interfaces, portable media players, development boards, or any circuit requiring a standard 3.5mm or 2.5mm audio connection.
