19 LED Waterproof Tail Light Assembly for Trailers, Trucks & More

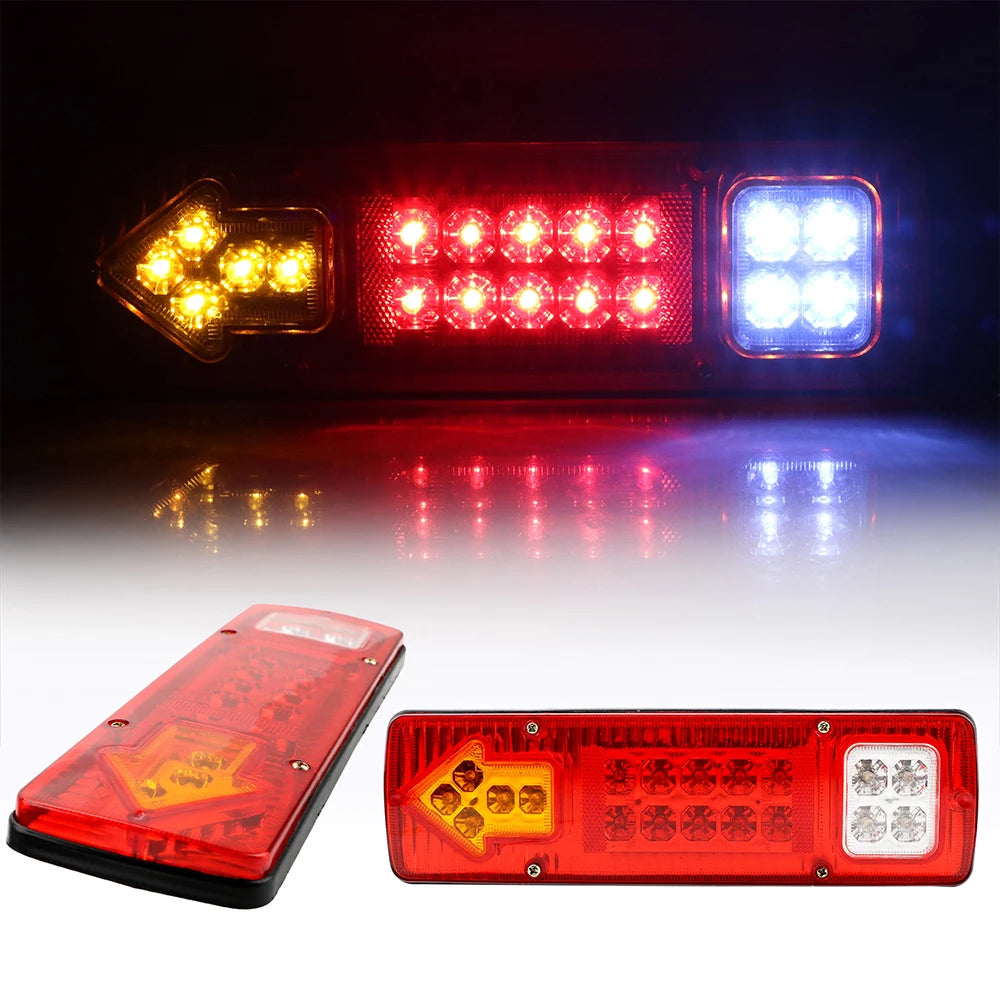

Upgrade your trailer, truck, RV, or boat with this heavy-duty 19 LED Tail Light Assembly. Featuring bright, energy-efficient LED chips, this all-in-one light unit combines turn signal, brake, reversing, and running light functions into a single weatherproof unit. Compatible with 12V and 24V systems, it's engineered for reliable performance across a wide range of commercial and recreational vehicles. Made in China.
Key Features
- Multi-Function Design: Integrates turn signal, brake, reversing, and running lights in one compact assembly.
- IP67 Waterproof: Fully sealed against water and dust — built to handle rain, mud, and tough outdoor conditions.
- Shockproof & Durable: Shock-resistant construction stands up to the vibrations of road, off-road, and marine use.
- Low Power Consumption: High-brightness LED chips deliver excellent visibility while drawing minimal power from your vehicle's electrical system.
- Dual Voltage Compatible: Works with both 12V DC and 24V DC systems.

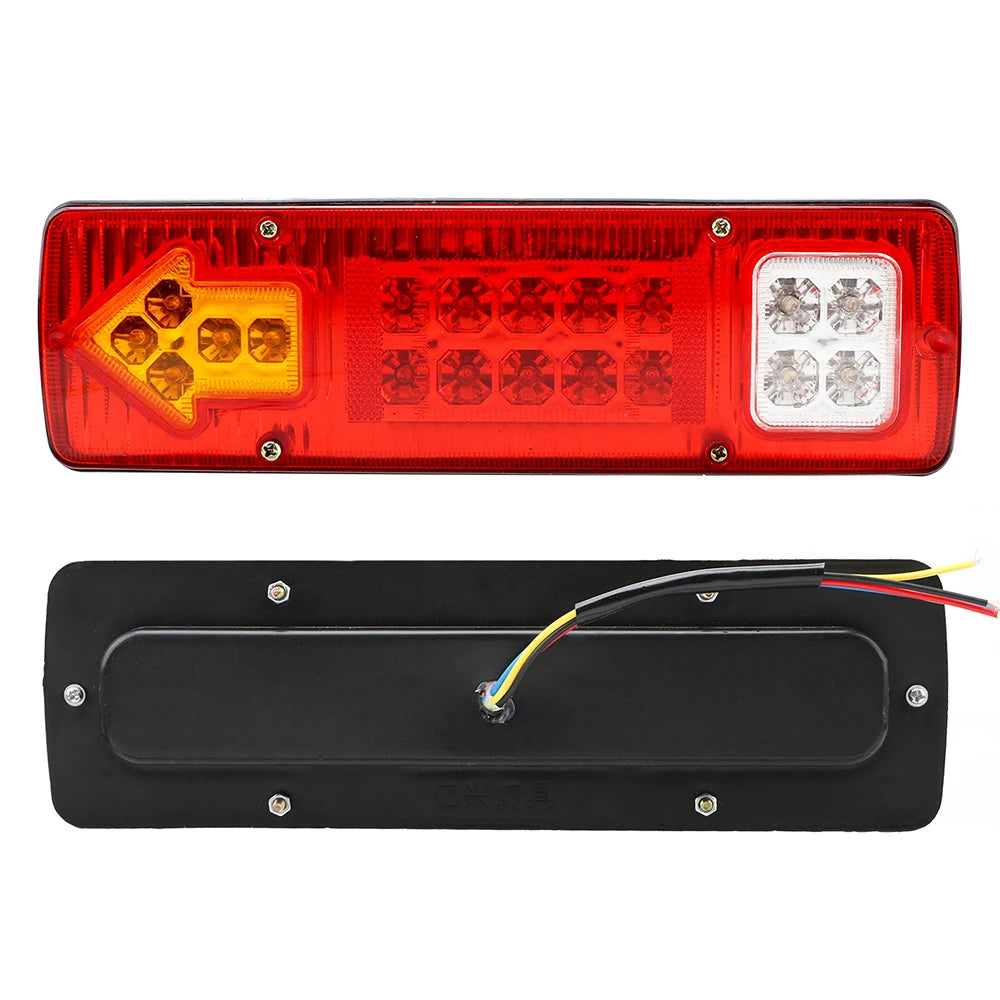

- Easy Installation: Simple color-coded wiring makes setup straightforward — no specialist tools required.
- Wide Application: Suitable for RVs, trucks, utility trailers, caravans, forklifts, cranes, excavators, lorries, and boats.
Specifications
- LED Count: 19 LEDs per unit
- LED Source: High-quality, high-brightness LED chips
- Light Colors: White, Yellow, Red

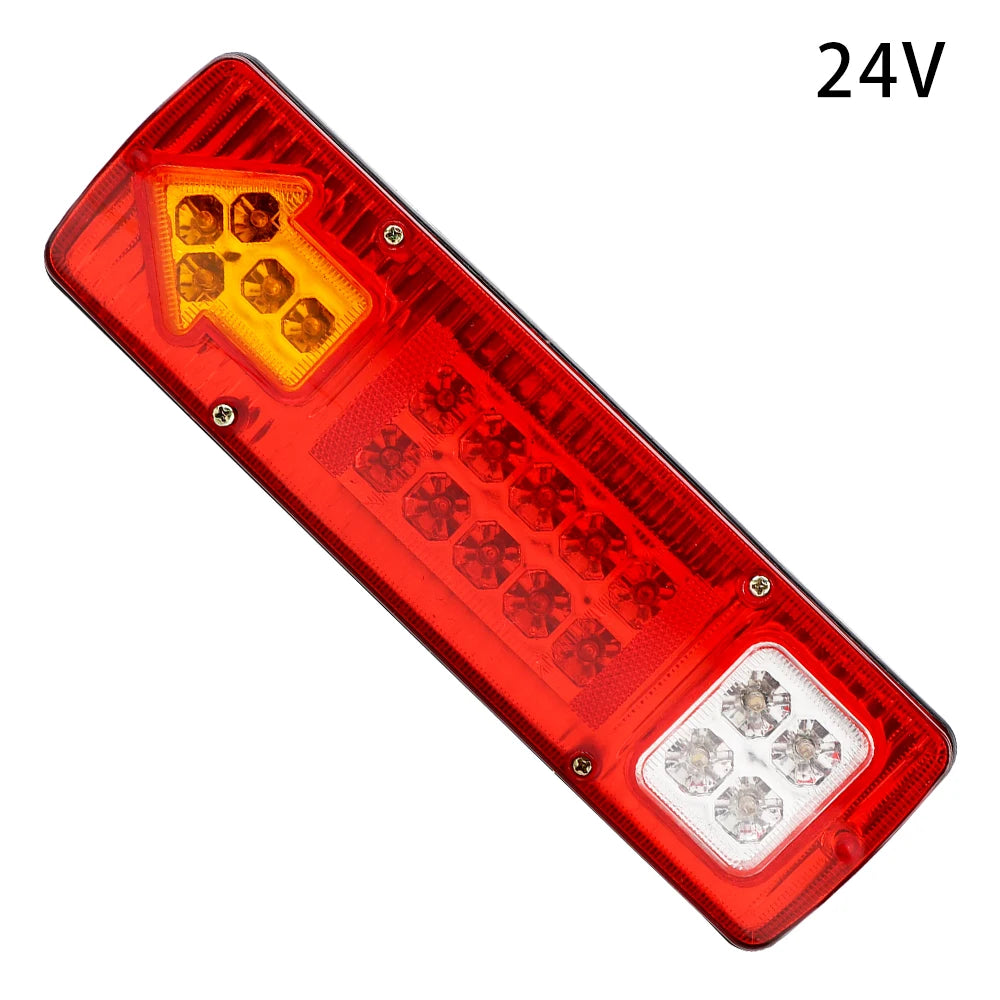

- Voltage: 12V DC / 24V DC
- Waterproof Rating: IP67
- Model: 23596

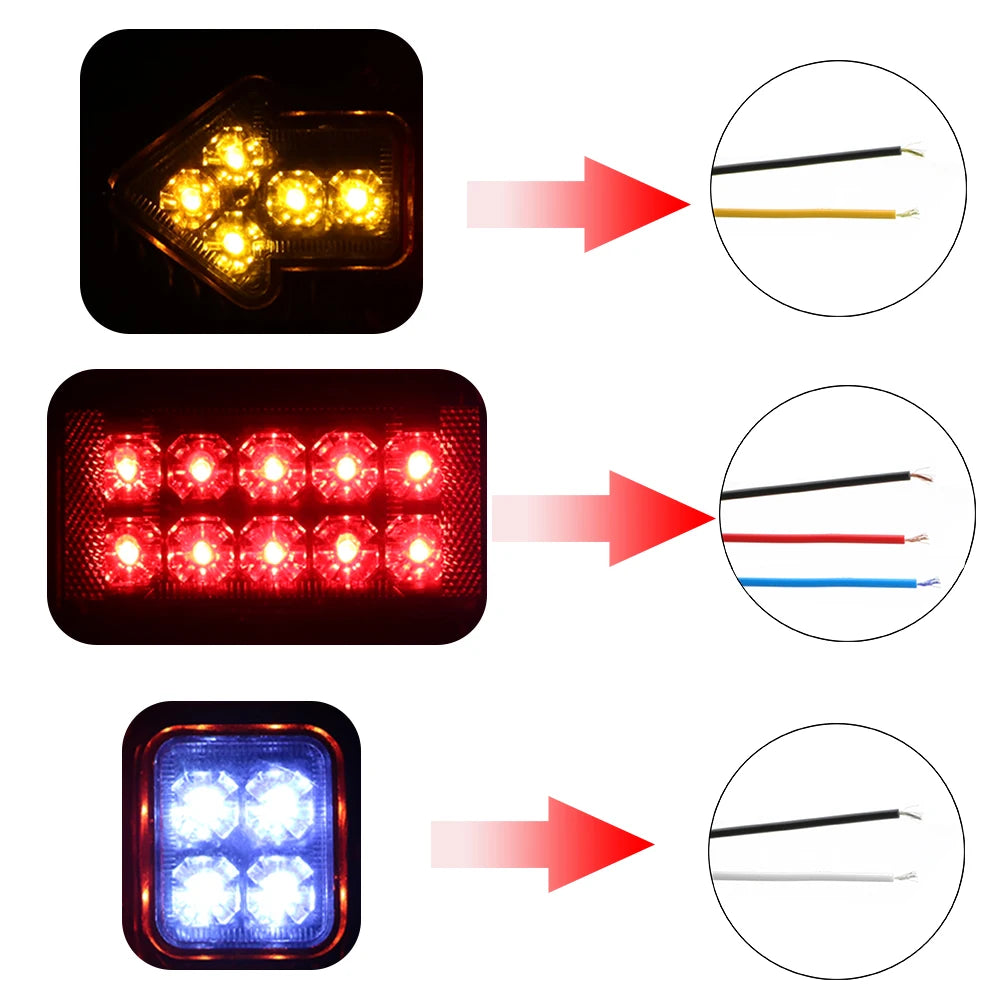

Wire Connection Guide
- Black Wire – Negative Electrode (Ground)
- Red Wire – Bright Red Light (Brake Light)
- Blue Wire – Dim Red Light (Running/Position Light)
- Yellow Wire – Yellow Light (Turn Indicators)
- White Wire – White Light (Running Light)
Package Includes
- 1 × 19 LED Waterproof Tail Light Assembly
Related Products You May Like
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Is this 19 LED tail light assembly compatible with both 12V and 24V vehicles?
A: Yes! The 19 LED tail light assembly supports both 12V DC and 24V DC electrical systems, making it compatible with a wide range of vehicles including trucks, trailers, RVs, caravans, boats, forklifts, and heavy machinery.
Q: What is the waterproof rating of this LED tail light?
A: This tail light assembly carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water — ideal for marine, off-road, and outdoor commercial applications.
Q: How do I wire the 19 LED tail light assembly?
A: The unit uses a simple color-coded 5-wire system: Black (ground/negative), Red (brake light), Blue (reversing/dim light), Yellow (turn signal indicators), and White (running light). No specialist tools are required, and most users can complete the installation quickly.
Q: What vehicles is this tail light assembly suitable for?
A: This LED tail light assembly is designed for a broad range of vehicles including utility trailers, lorries, trucks, RVs, caravans, boats, cranes, forklifts, and excavators — any vehicle running on a 12V or 24V DC electrical system.
