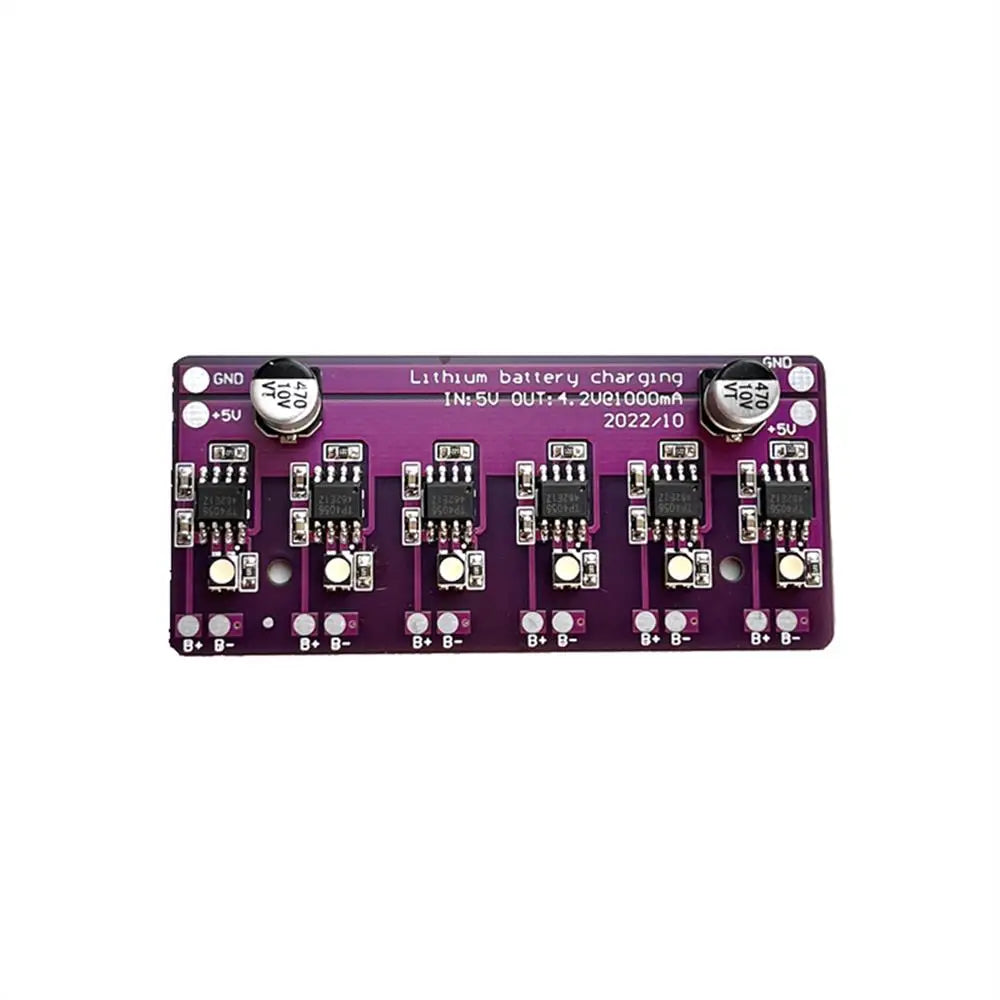

Power up to six 18650 lithium cells simultaneously with this compact 4056-based PCB charging board from LOTHYE. Featuring six independent parallel charging groups, each delivering 1A at 4.2V, this board is ideal for DIY battery packs, electric scooter builds, RC projects, and portable power assemblies. The common-ground output design allows modules to be daisy-chained in parallel for even higher combined output current.
Key Features
- 6 Independent Parallel Groups: Each channel outputs up to 1000mA (1A), giving a combined array output of up to 6A total when all slots are in use.

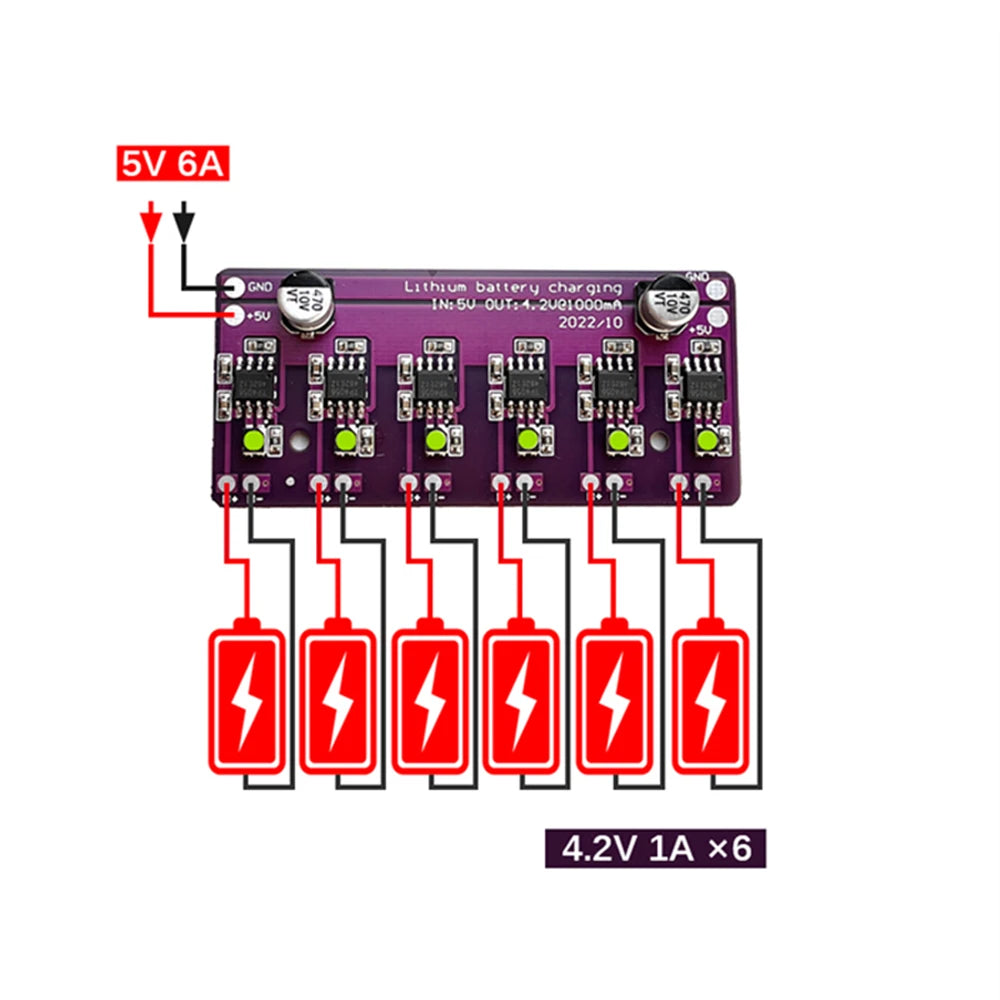

- 5V USB-Compatible Input: Accepts 5V–6V input (standard 5V USB power supply compatible) — requires an external 5V 6A transformer (not included).
- Precise 4.2V Output: Regulated output voltage of 4.2V (±1%) for safe, accurate lithium cell charging.

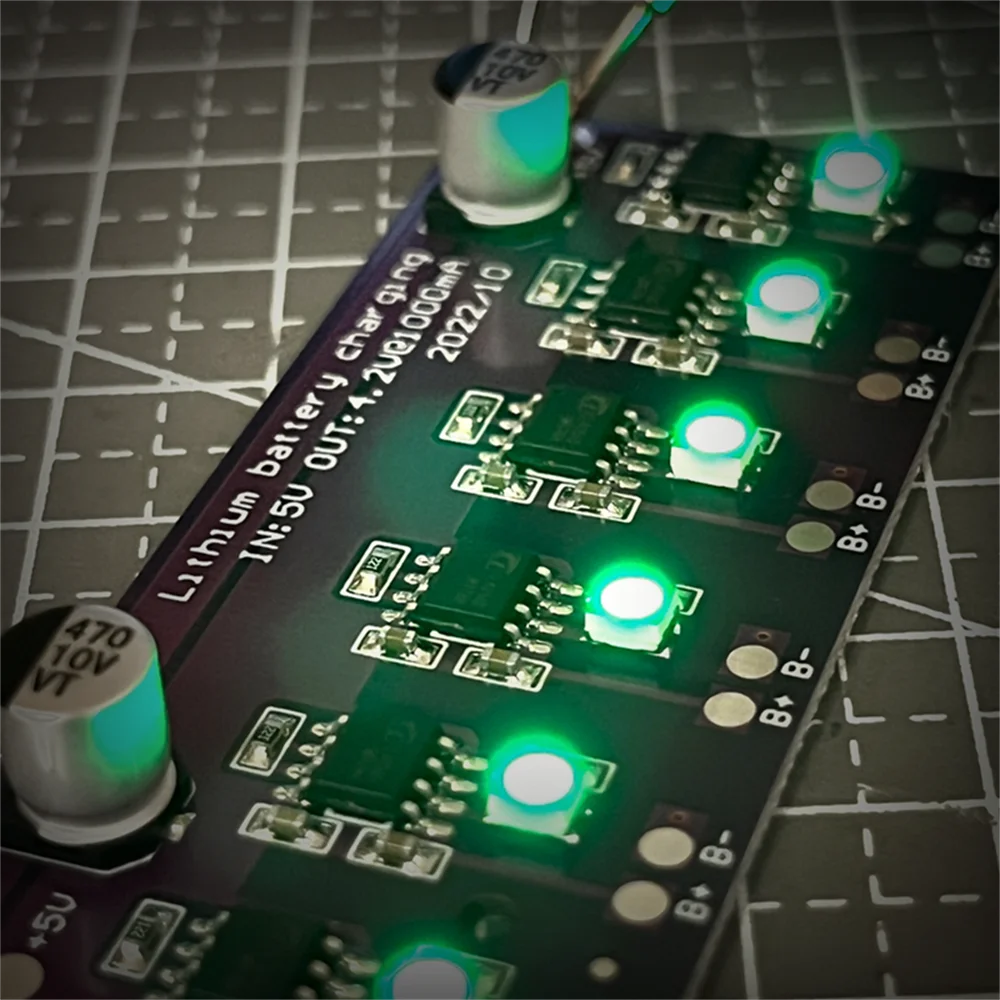

- LED Status Indicators: Red LED during charging; green LED (steady or flashing) when fully charged — easy to monitor at a glance.
- Parallel Expandable: Common-ground design lets you connect multiple boards in parallel to scale output current further.
- Compact Form Factor: Dimensions: 40mm × 67mm × 10mm — fits neatly into tight enclosures and custom builds.
Specifications
| Input Voltage | 5V – 6V DC |
| Output Voltage | 4.2V (±1%) |
| Output Current (per channel) | 1A (1000mA) |
| Number of Charging Channels | 6 (independent, parallel) |
| Status Indicator | Red = Charging / Green = Full |
| Board Dimensions | 40mm × 67mm × 10mm |
| Compatible Cell Type | 18650 Lithium-Ion |
What's in the Box
- 1× PCB Charging Board (battery box and batteries NOT included)
Important Usage Notes
- Do not exceed 6V input — overvoltage or reverse polarity will damage the chip.
- Do not reverse the output polarity to the battery.
- Multiple boards may be connected in parallel only — do NOT connect in series when charging batteries.
- This board does not include a transformer. A 5V 6A power supply must be provided separately by the user.
