16mm Momentary Push Button Switch – IP65 Waterproof Panel Mount
16mm Momentary Push Button Switch – IP65 Waterproof Panel Mount
16mm Momentary Push Button Switch – Waterproof IP65 Panel Mount

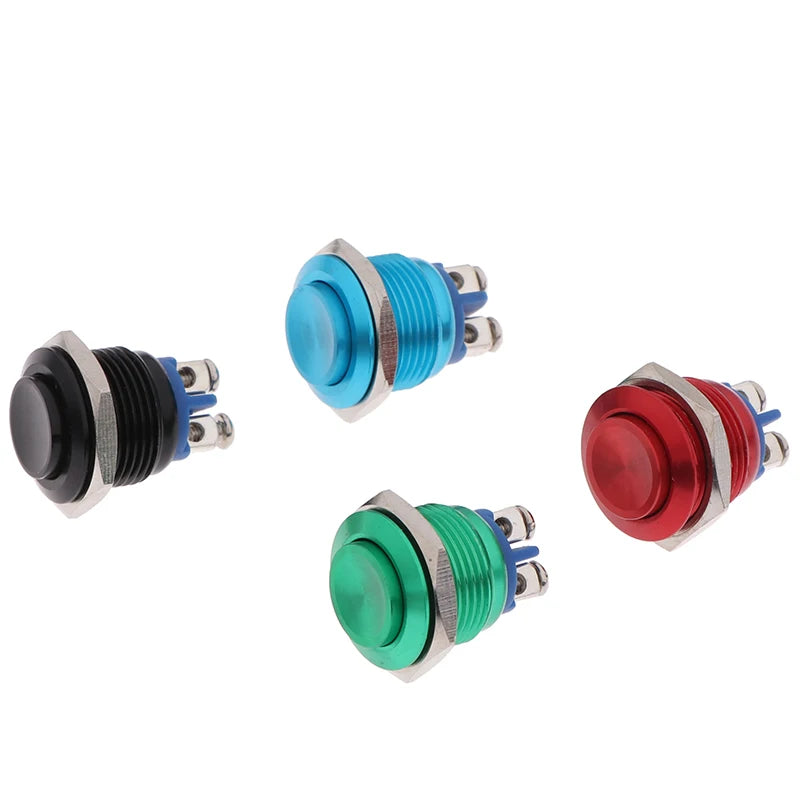

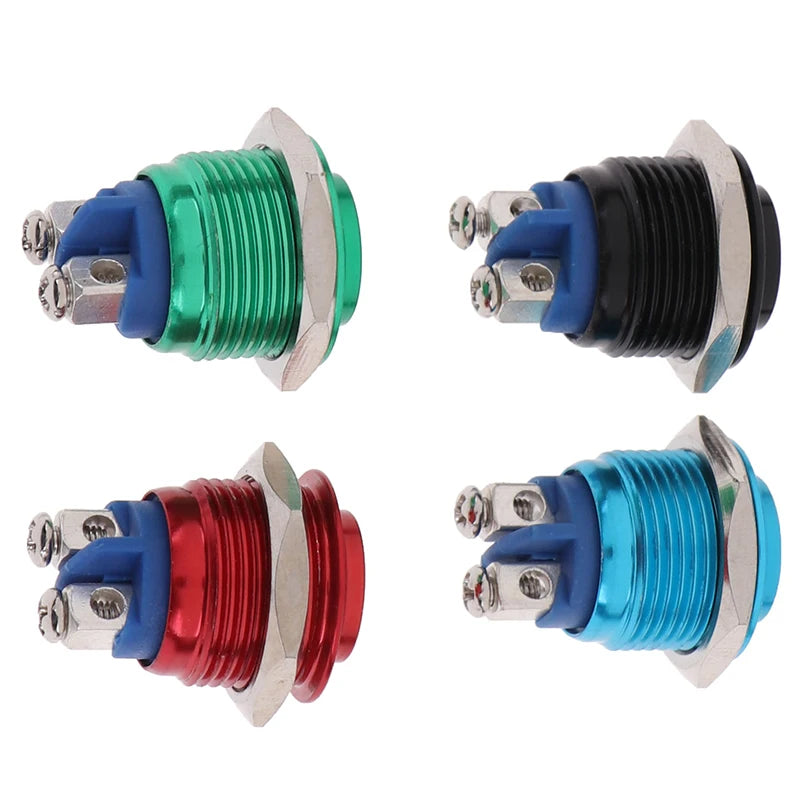

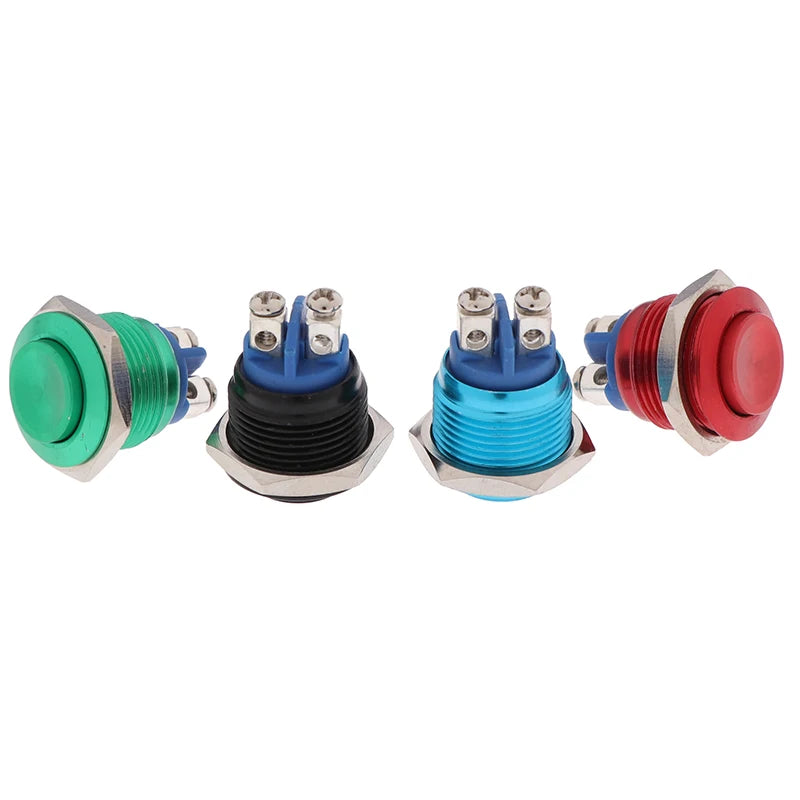

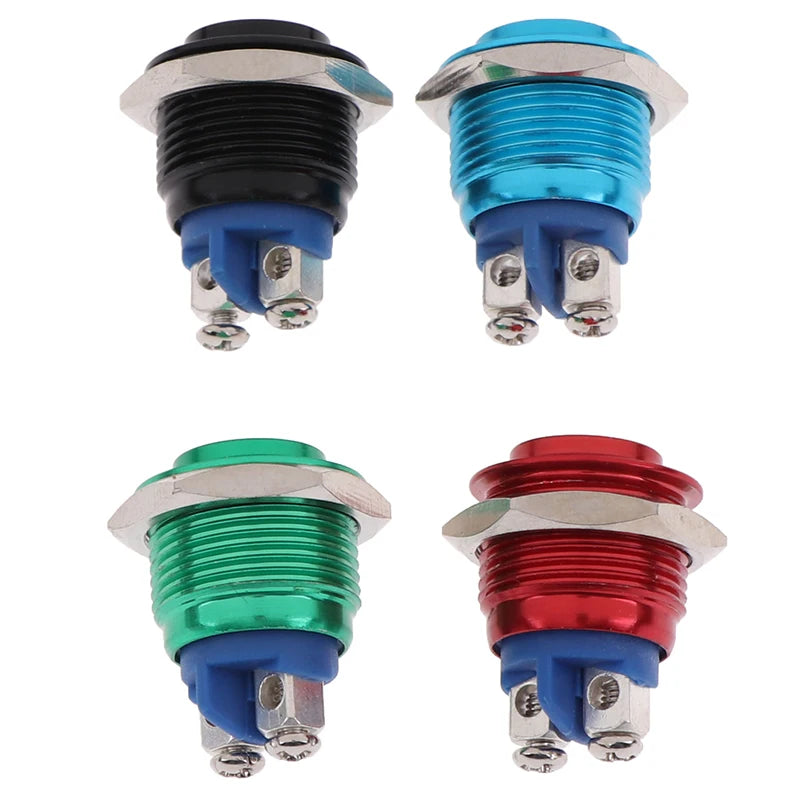

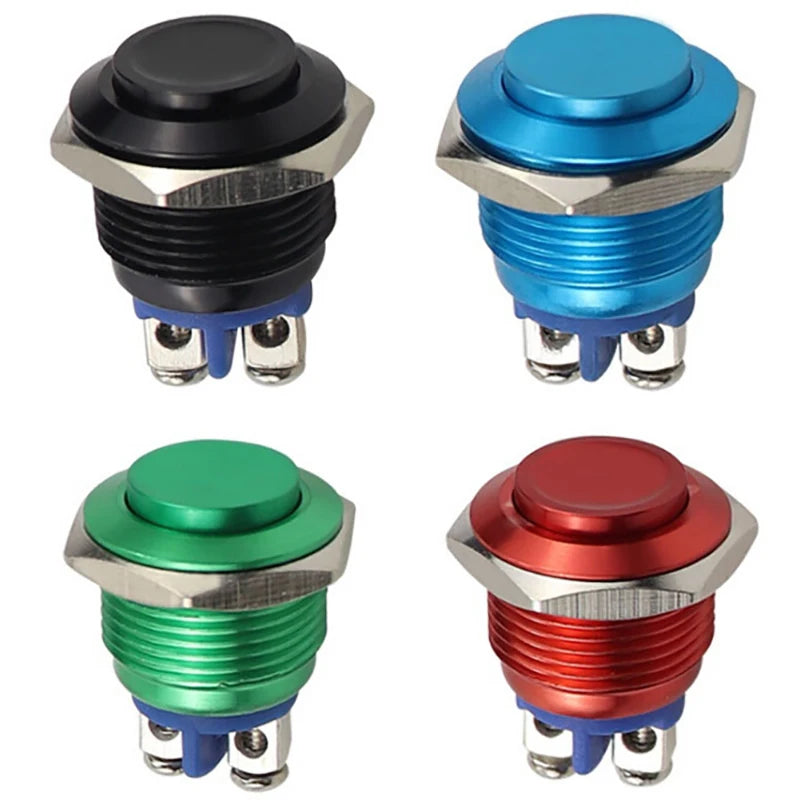

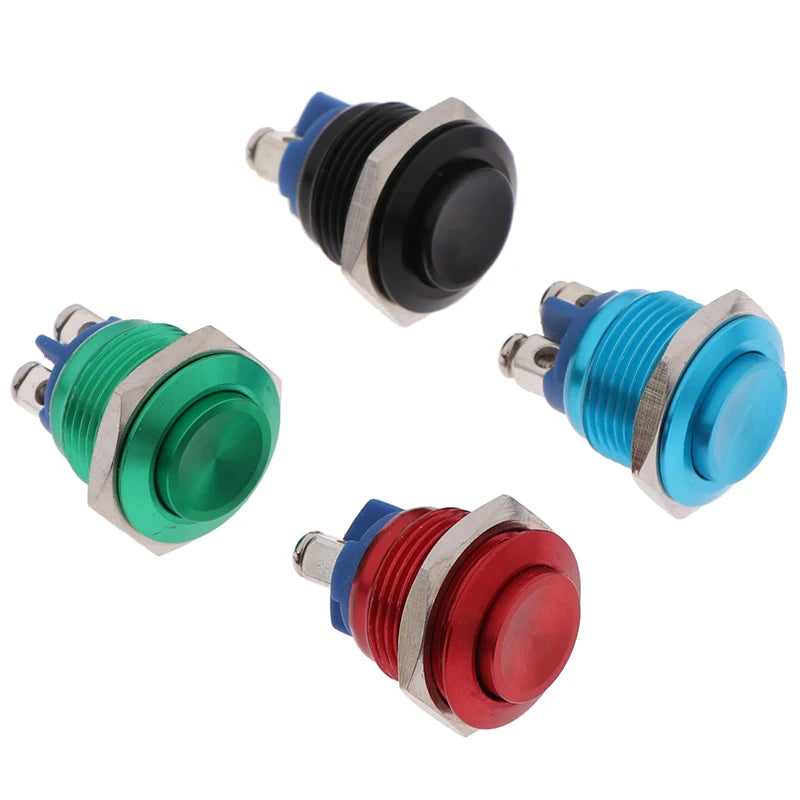

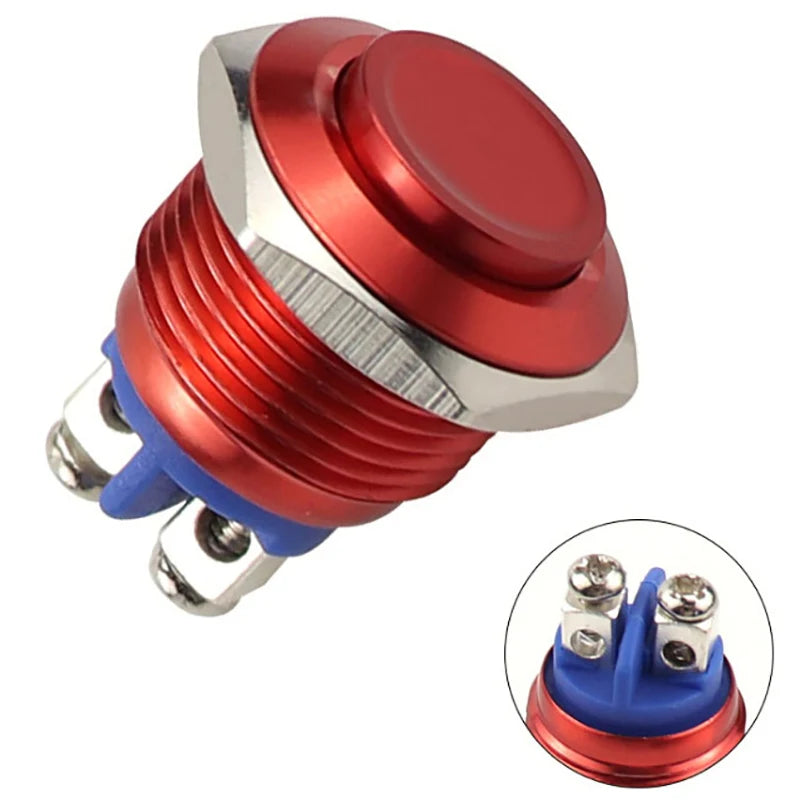

This compact, robust 16mm momentary push button switch is built for reliable circuit control in a wide range of electrical and industrial applications. Featuring IP65 waterproof and IK08 impact-resistant ratings, silver-plated contacts, and an alloy body, it delivers lasting performance whether used indoors or in demanding environments.
Key Features
- Momentary / Reset Action: Automatically springs back when released — ideal for precise, momentary circuit triggering.
- IP65 & IK08 Rated: Dustproof, waterproof, and shockproof for reliable use in tough conditions.
- Silver-Plated Contacts: Ensures excellent conductivity and long service life.
- Versatile Circuit Compatibility: Suitable for electromagnetic starters, contactors, relays, and general electric circuits.
- Easy Bushing Mount Installation: 16mm panel cut-out with screw terminal connections for quick, secure fitting.
- Available in Multiple Colors: Black, Green, Blue, and Red for easy panel identification.
- Low Voltage Safe: Rated for below 50V AC or 75V DC (EU LVD compliant).
Specifications
| Mounting Cut-Out | Approx. 16mm / 0.63" |
| Head Diameter | Approx. 18mm / 0.7" |
| Total Length | Approx. 2.5cm |
| Function | Momentary / Reset |
| Colors Available | Black, Green, Blue, Red |
| Protection Rating | IP65, IK08 |
| Contact Type | 1NO (Normally Open) |
| Contact Material | Silver Plated |
| Terminal Style | Screw Terminal |
| Installation | Bushing Mount |
| Body Material | Alloy |
| Voltage Rating | Below 50V AC / 75V DC |
What's in the Box
- 1 × 16mm Momentary Push Button Switch
Made in Mainland China.
Looking for more handy tools and components? Check out our Air Compressor Pressure Gauge or the Electromagnetic Induction Tester – Coil & Circuit Fault Detector to complement your workshop setup.
Note: Due to lighting and screen differences, the item's color may appear slightly different from the pictures. Please allow 0.1–0.5cm measurement tolerance.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between a momentary push button switch and a latching switch?
A: A momentary push button switch only completes the circuit while the button is held down — it automatically resets (springs back) the moment you release it. A latching switch, by contrast, stays in its new position (ON or OFF) until pressed again. This 16mm momentary switch is ideal for applications where you need a brief trigger signal, such as activating a relay, contactor, or electromagnetic starter.
Q: Is this push button switch suitable for outdoor use?
A: Yes. This switch carries an IP65 waterproof rating (protected against dust ingress and low-pressure water jets) and an IK08 impact resistance rating, making it well suited for outdoor panel mounting, industrial enclosures, and other demanding environments.
Q: What panel cut-out size do I need to install this switch?
A: You need a 16mm (approximately 0.63 inch) round hole in your panel or enclosure. The bushing mount design allows quick, secure installation with the included hardware, and the screw terminal connections make wiring straightforward.
