12V Inductive Ignition Timing Light – Car, Motorcycle & Marine

$296.47 $810.04

12V Strobe Ignition Timing Light – Car, Motorcycle & Marine

Get your engine running at peak efficiency with this professional-grade inductive ignition timing light. Compatible with 12V gasoline engines across cars, motorcycles, and marine vessels, this strobe timing gun makes it easy to check and adjust ignition timing directly from the engine flywheel or belt pulley — no guesswork required.

Made in Mainland China.

Key Features

Universal Compatibility: Works with 12V cars, motorcycles, boats, and all 2-stroke or 4-stroke gasoline engines.
Ergonomic Design: Comfortable, ergonomically shaped handle with easy-press trigger for extended use without fatigue.

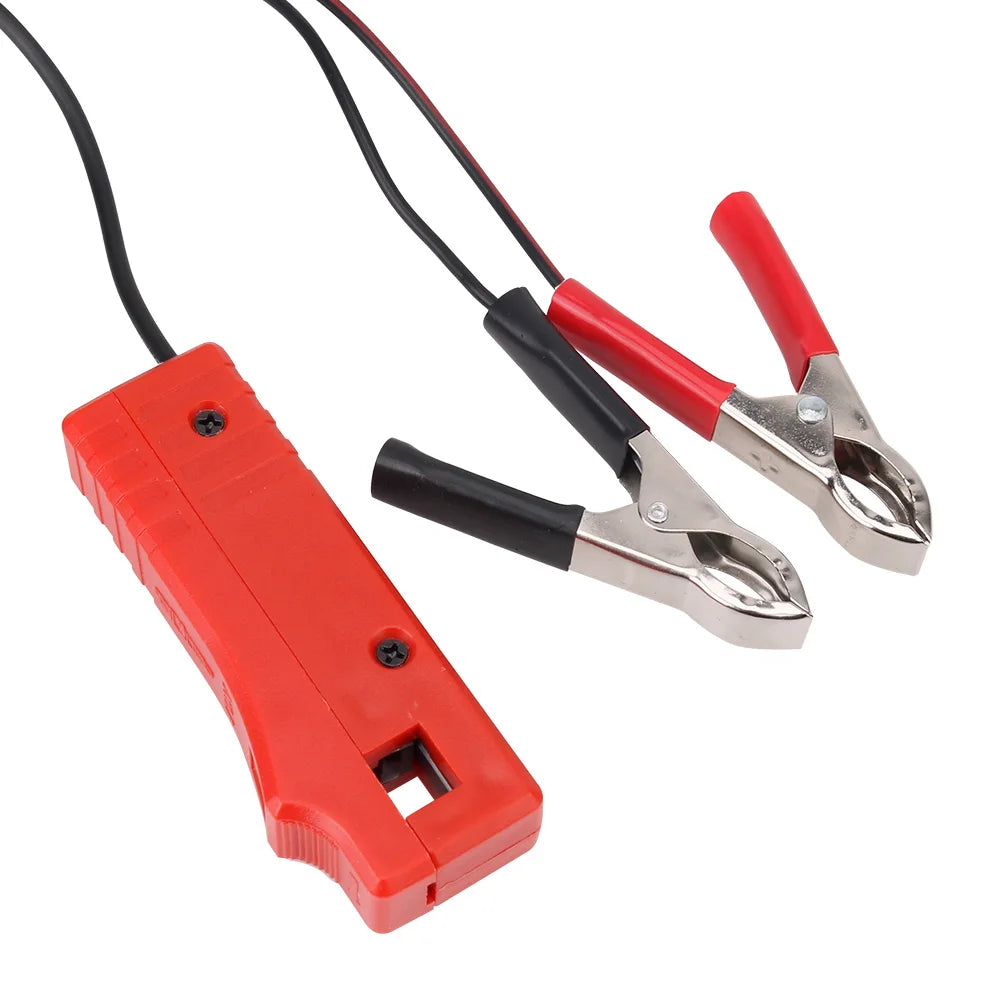

Inductive Clamp Trigger: High-voltage inductive clamp attaches to the No. 1 spark plug wire — simply align the arrow toward the spark plug for instant readings.
Wide RPM Range: Accurately reads engine speed from 200 to 10,000 RPM.
Advance Angle Detection: Detects knock suppression control systems and vacuum advance angle control systems, automatically adjusting advance angle readings as engine speed changes.
Timing Reset Capability: Allows you to re-set ignition timing after long-term engine wear, timing belt replacements, or cylinder pressure changes.
CE Certified & Durable ABS Body: Built for long-lasting workshop use with high-quality ABS material.

Specifications

Material: ABS
Input Voltage: 12V DC (Red = Positive, Black = Negative)
Working Temperature: 0–40°C
Trigger Point: High-voltage coil No. 1 spark plug
Speed Range: 200–10,000 RPM
Color: Black
Certification: CE

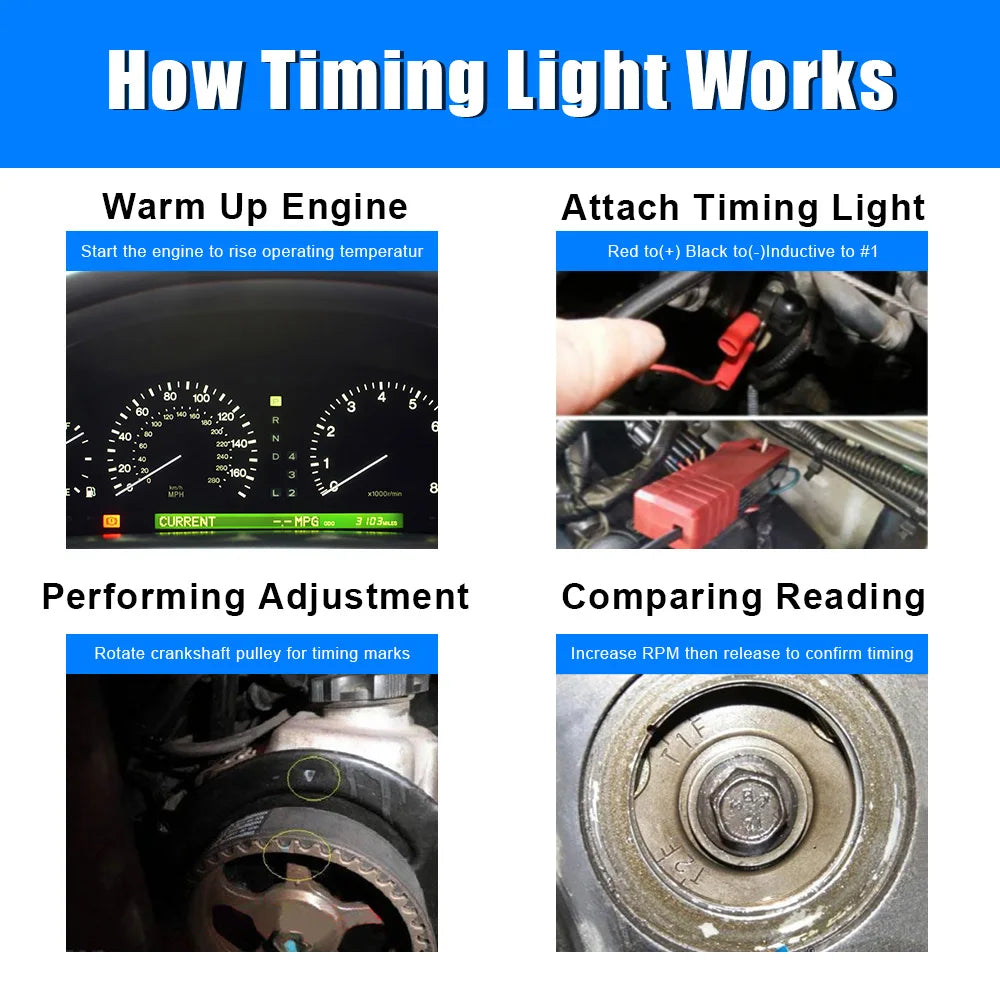

How to Use

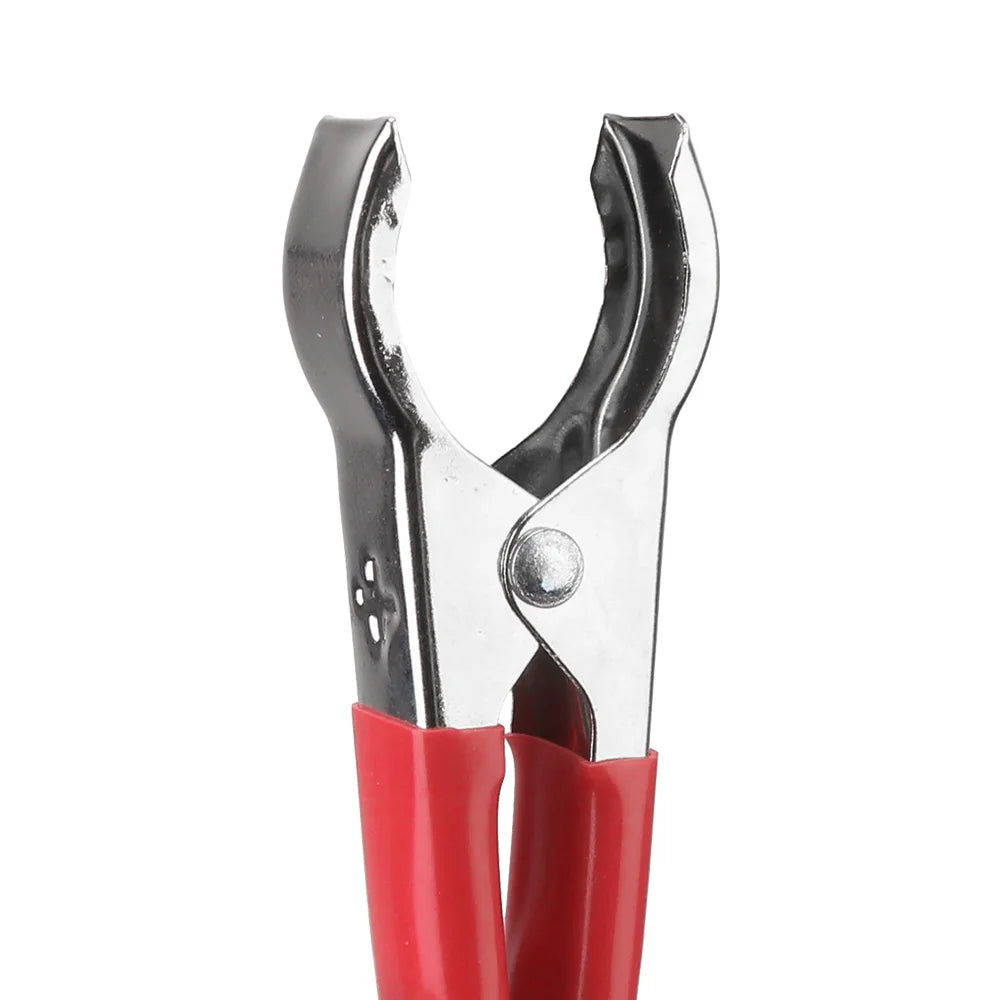

Connect the red clip to the battery positive terminal and the black clip to the negative terminal.

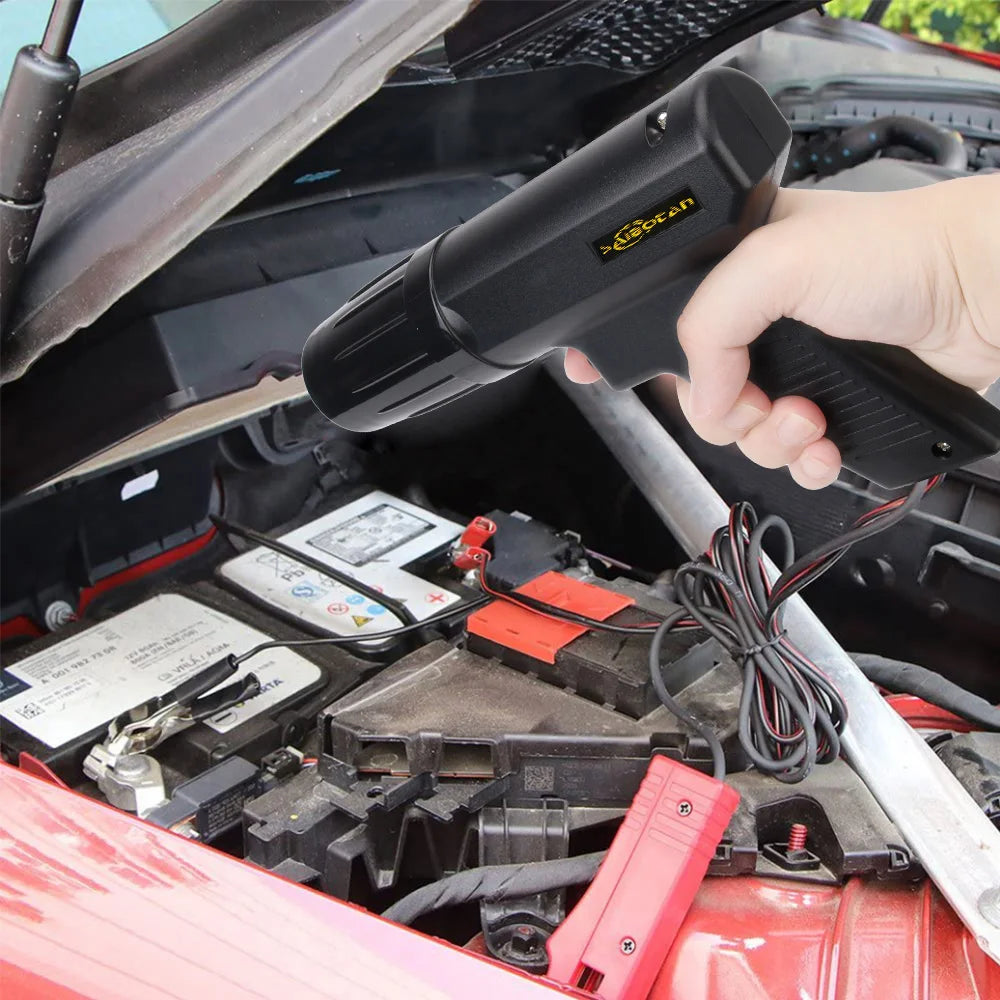

Attach the inductive clamp to the No. 1 cylinder high-voltage spark plug wire, ensuring the arrow on the clamp points toward the spark plug.
Start the engine, press the trigger, and aim the strobe light at the timing marks on the flywheel or pulley.
Read the timing scale and adjust as needed for optimal engine performance.

Package Includes

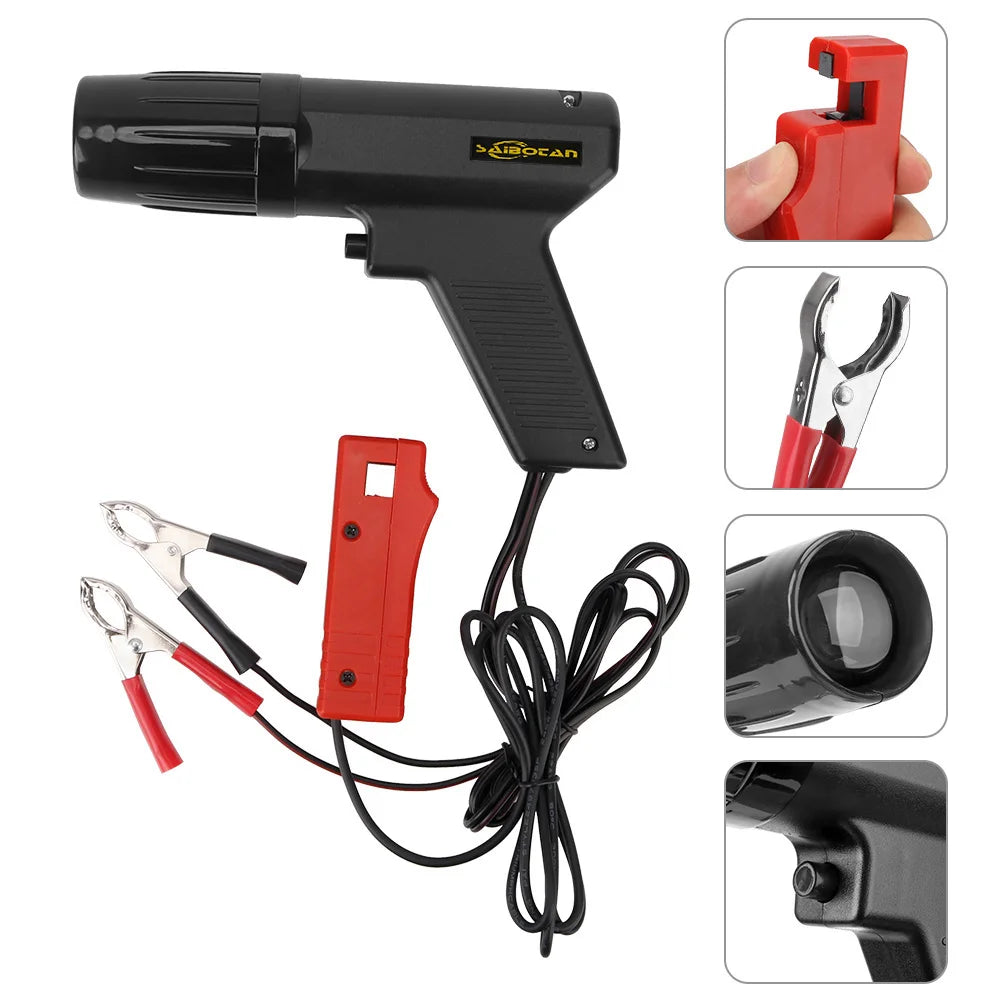

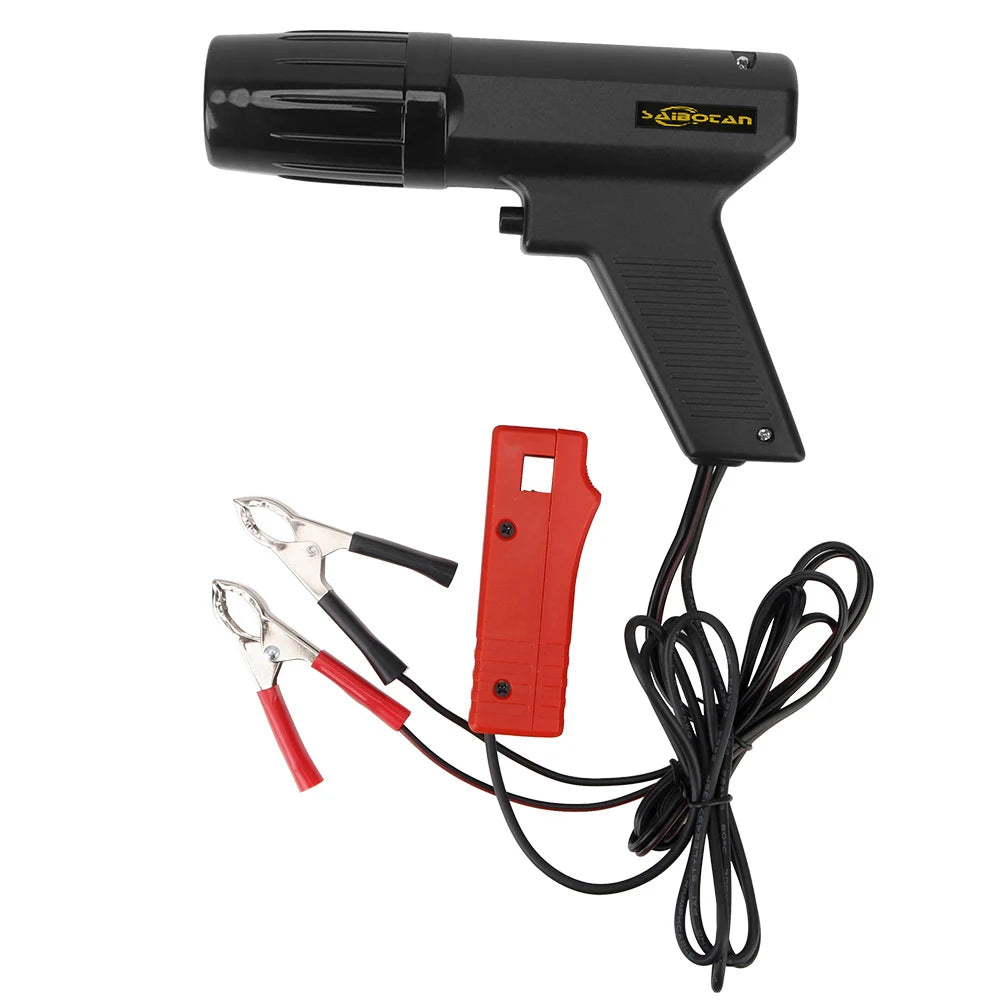

1 × Ignition Timing Light (TL-122)

Related Tools You May Like

Learn more: FuelEconomy.gov driving efficiency guidance

Frequently Asked Questions

Q: What types of engines is this ignition timing light compatible with?

A: This 12V inductive ignition timing light is compatible with all 12V gasoline engines, including 2-stroke and 4-stroke engines found in cars, motorcycles, and marine vessels. It is not designed for diesel engines.

Q: How do I connect the timing light to my vehicle?

A: Connect the red alligator clip to your battery's positive terminal and the black clip to the negative terminal. Then clamp the inductive pickup around the No. 1 spark plug wire, making sure the arrow on the clamp points in the direction of the spark plug. Start the engine and press the trigger to activate the strobe.

Q: Can this timing light detect advance angle changes at different engine speeds?

A: Yes. This timing light can detect both knock suppression control systems and vacuum advance angle control systems, and it adjusts its advance angle reading dynamically as the engine RPM changes — making it ideal for comprehensive ignition system diagnostics.
