12V Automatic Telescopic Car Antenna – Waterproof AM/FM Aerial for Car & SUV
Upgrade your vehicle's radio reception with this 12V Electric Power Automatic Telescopic Antenna. Designed for cars and SUVs, this motorized aerial extends and retracts automatically, delivering excellent AM/FM signal clarity while keeping your vehicle looking sleek when the antenna is retracted. Made in Mainland China.
Key Features
- Quiet Operation: Motor noise under 50dB for a distraction-free driving experience.
- Long Service Life: Rated for over 50,000 extension/retraction cycles and a top force greater than 4KG.
- Fully Waterproof: Built to withstand rain, car washes, and outdoor elements with confidence.

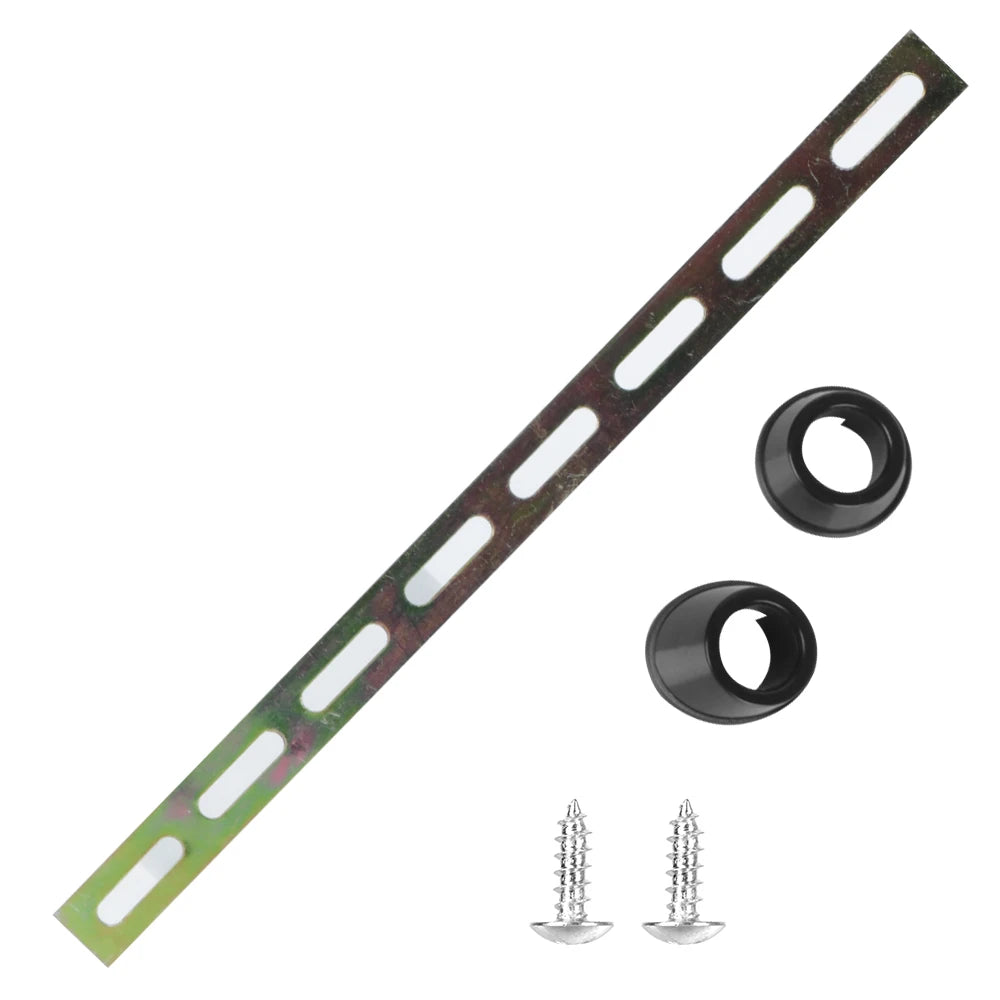

- Easy Installation: Comes with multiple optional mounting heads and straightforward 3-wire connection.
- Built-in Miniature Relay: Paired with a 3C-2V coaxial cable with adjustable length for a clean, custom fit.
- 5-Section Stainless Steel Mast: Sturdy stainless steel construction extends to approximately 750mm for superior AM/FM reception.
- Flexible Control: Connect the green wire directly to power for automatic rise/lower on ignition, or use an external control cable for manual operation.
Specifications
| Model | BF-686 |
| Working Voltage | 12V (Range: 10V–14V) |
| Working Current | 0.7 ± 0.2A (max <0.5A idle) |
| Antenna Extension Length | ~750mm |
| Protection Bottom Plate | ~305mm |
| Cable Length | ~1400mm |
| Installation Angle | 0–30° |
| Certification | CE Certified |
| Color | Black |

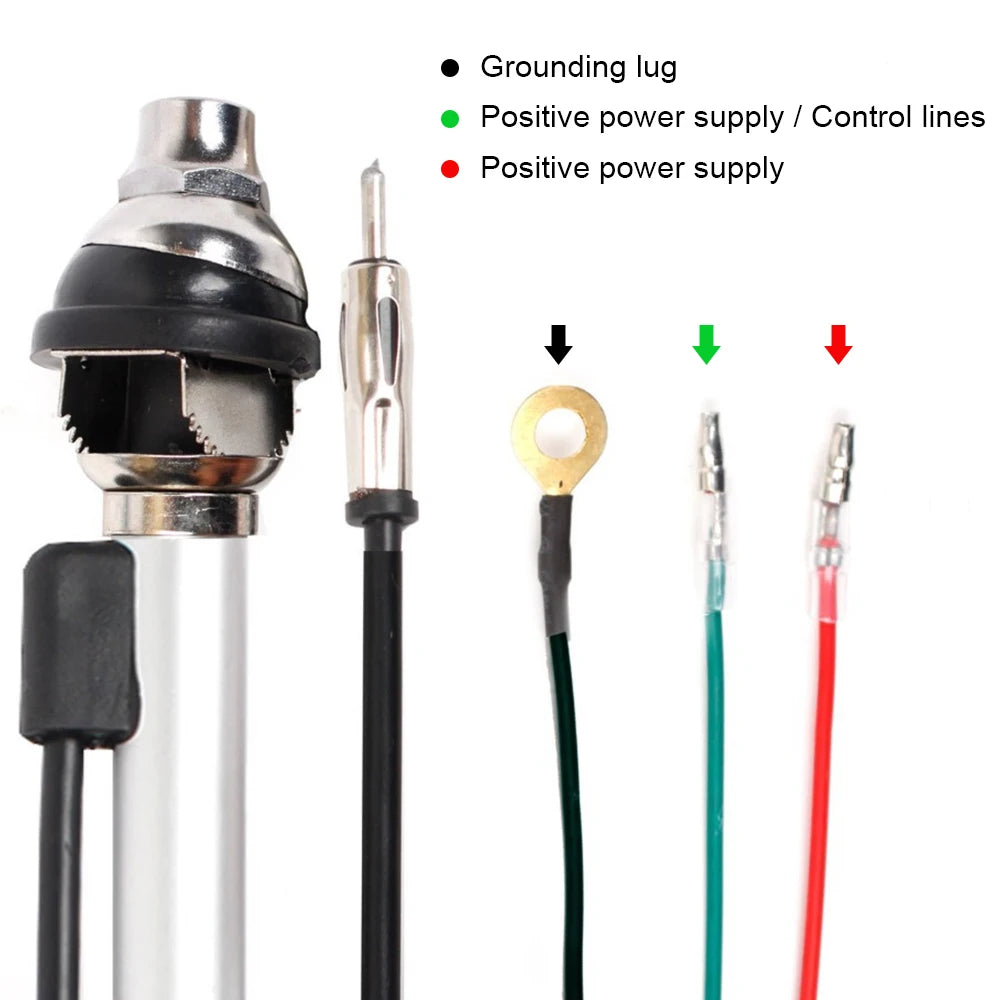

Cable Connection Guide (3-Wire)
- Red Wire: Connect to the positive pole of the power supply.
- Black Wire: Ground connection.
- Green Wire: Option 1 – Connect directly to positive power; antenna rises when power is on and retracts when off. Option 2 – Connect to an external control cable for free manual control.

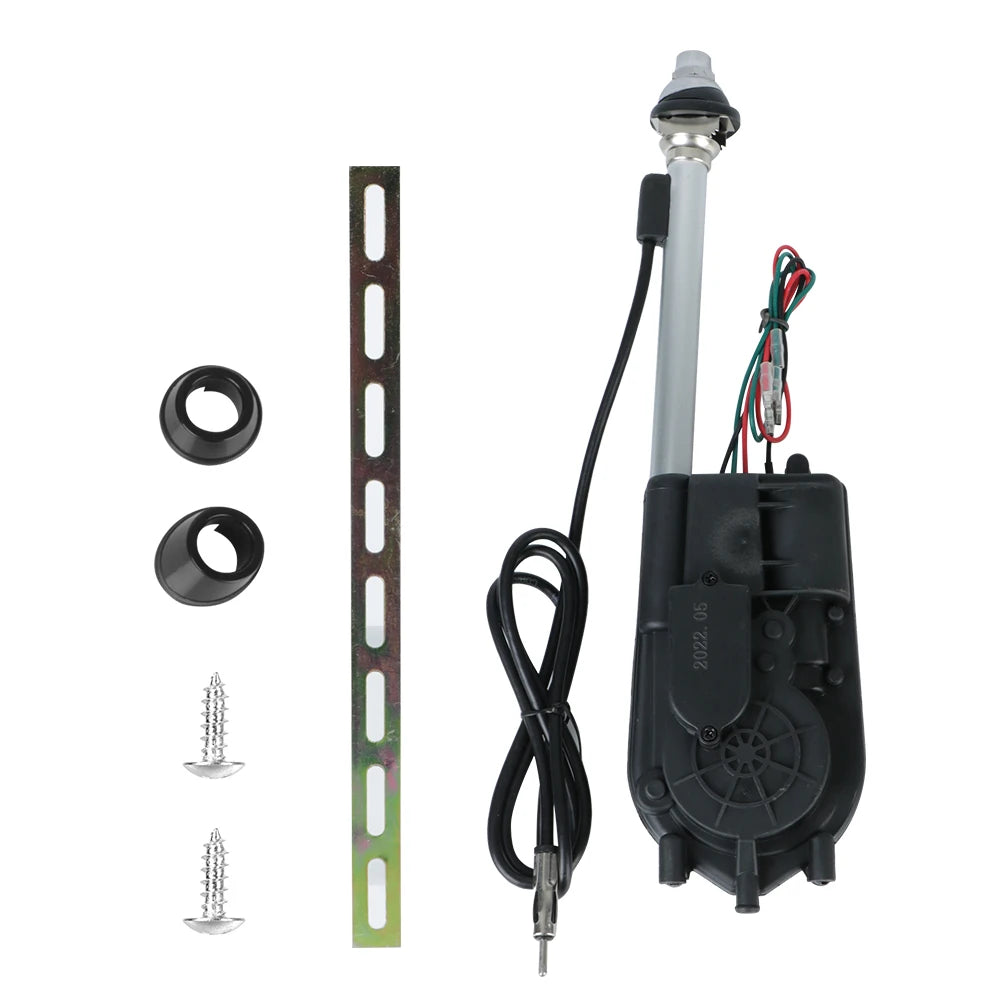

Package Includes
- 1 x Automatic Telescopic Car Antenna (Black)
Related Products You May Like
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Is this automatic telescopic car antenna compatible with both AM and FM radio?
A: Yes! The 5-section stainless steel mast is engineered for excellent AM/FM radio reception, making it compatible with standard car and SUV radio systems that operate on both AM and FM bands.
Q: How does the automatic telescopic antenna extend and retract?
A: The antenna is powered by a 12V electric motor. When wired via the red/black/green 3-wire connection, the antenna automatically extends when the ignition or radio is switched on and retracts when powered off — no manual effort required. You can also connect the green wire to an external control cable for flexible manual control.
Q: Is this car antenna waterproof?
A: Yes, this antenna is fully waterproof and built to handle rain, car washes, and general outdoor exposure without affecting performance or longevity.
Q: What vehicles is this antenna suitable for?
A: This 12V automatic telescopic antenna is suitable for most standard 12V cars and SUVs. The adjustable installation angle (0–30°) and multiple optional mounting heads make it adaptable to a wide variety of vehicle body types.
