118° Double-Sided Drill Gauge – Stainless Steel Measuring Tool
118° Double-Sided Drill Gauge – Stainless Steel Measuring Tool
118° Double-Sided Drill Point Gauge – Precision Stainless Steel Measuring Tool
Keep your drill bits perfectly sharp and correctly angled with this 118° Double-Sided Drill Gauge. Crafted from high-quality stainless steel, this compact measuring tool lets machinists, woodworkers, and hobbyists quickly verify drill point angles and diameters — right at the workbench or in the field. Its slim, pocket-friendly profile makes it an indispensable addition to any tool kit.
Key Features
- 118° Angle Verification: Precisely checks both sides of a drill point for correct grinding geometry — ideal for standard twist drills up to 50 mm in diameter.
- Double-Sided Design: Measure both the cutting edge angle and the center (grinding) angle in a single tool, saving time and eliminating guesswork.

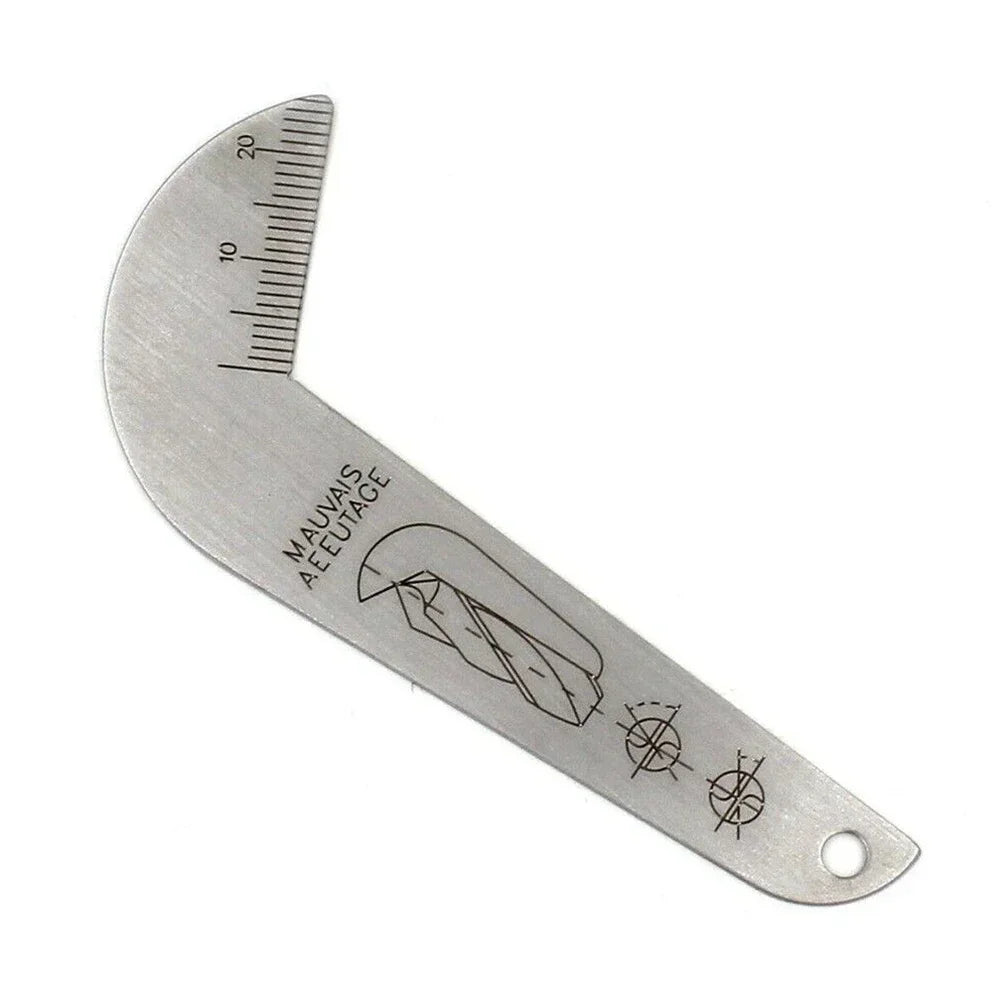

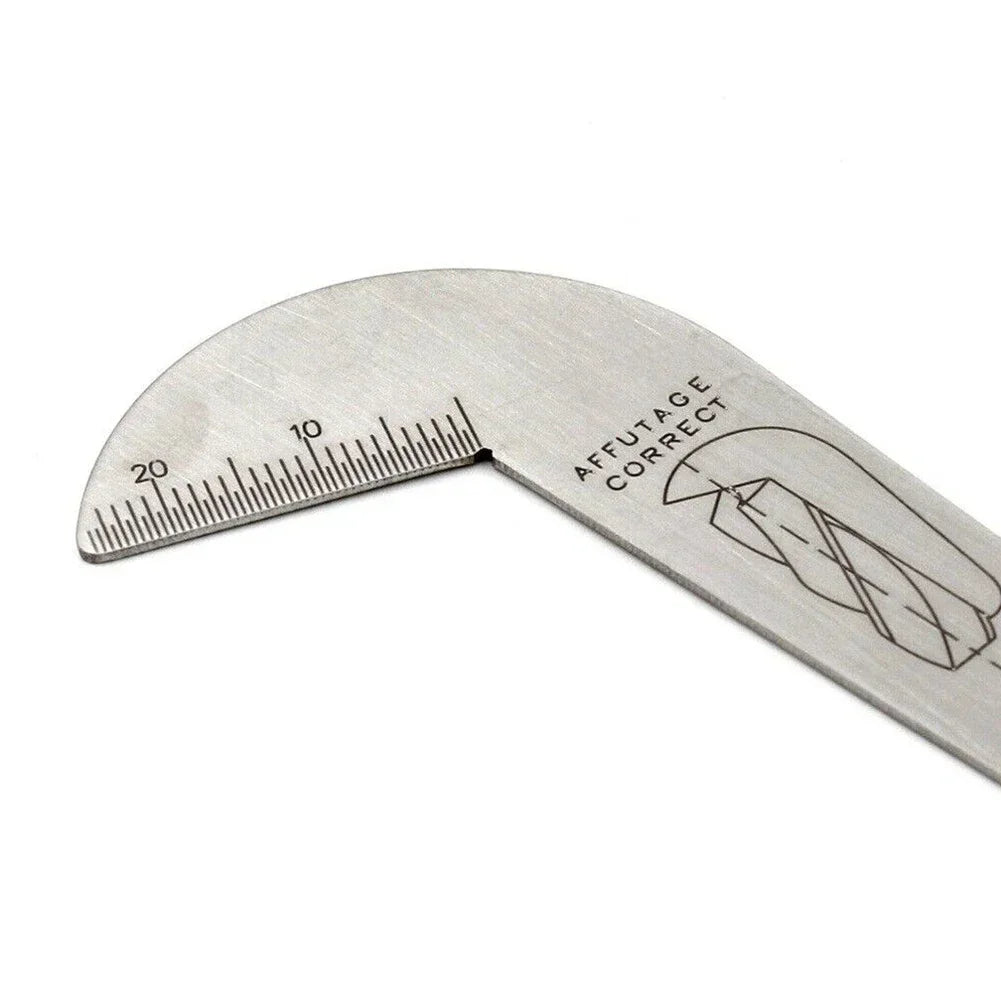

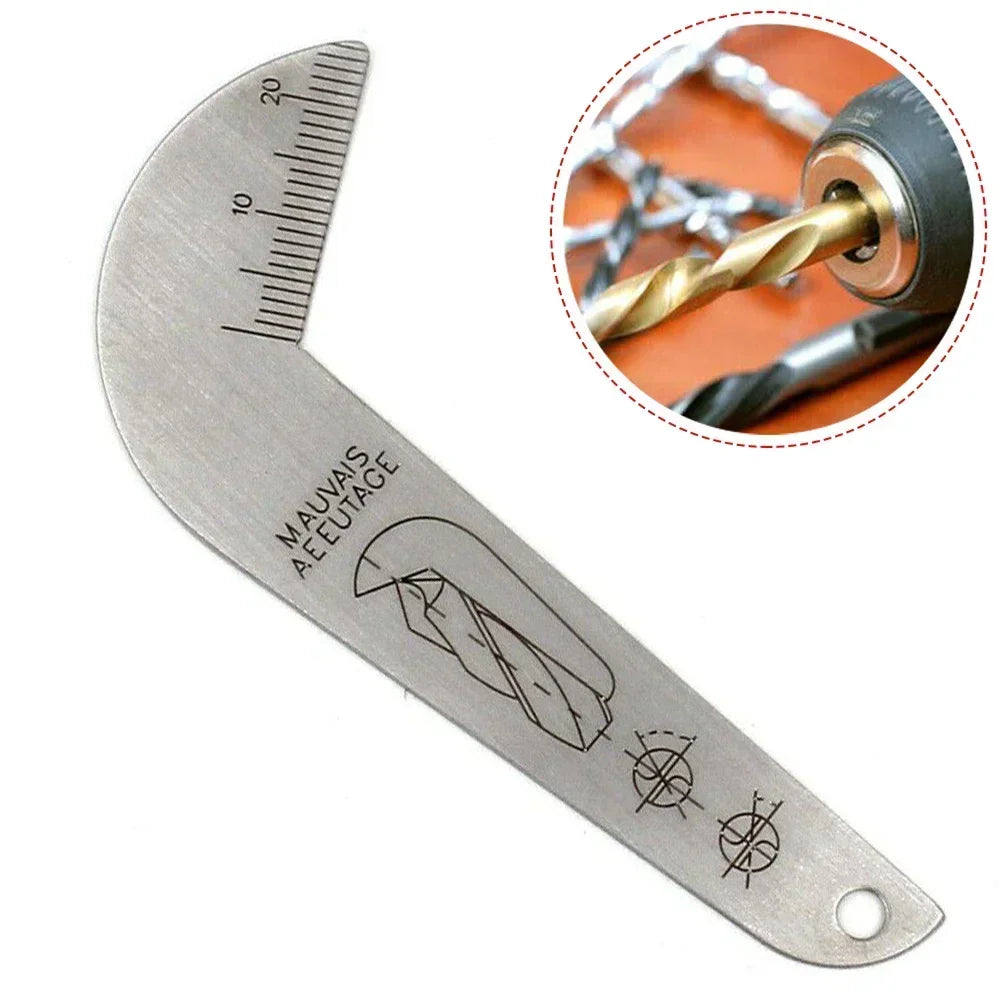

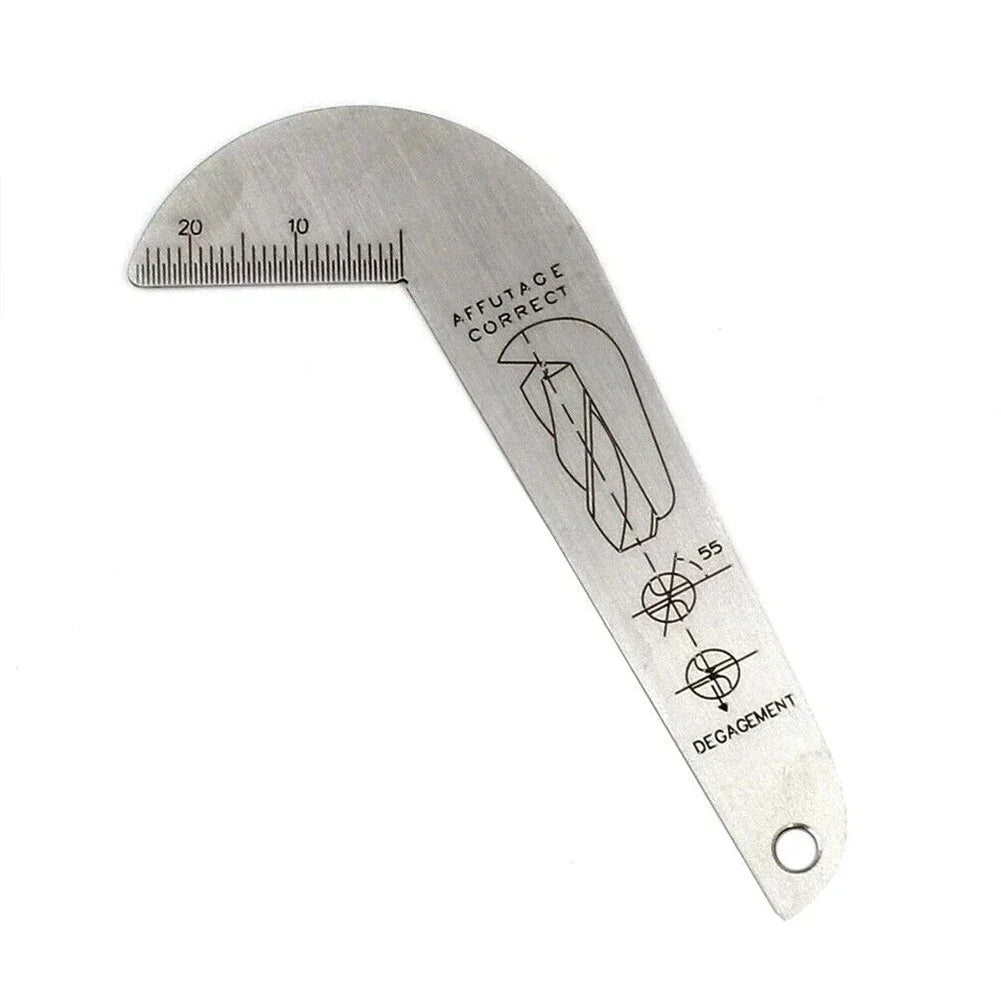

- Built-In Measurement Sketches: Engraved diagrams on the gauge guide you through proper use, so there's no need to consult a manual.
- Durable Stainless Steel Construction: Resists bending and corrosion, ensuring long-lasting accuracy and a reliable service life.
- Measuring Range: 0–20 mm diameter range for versatile compatibility with common drill bit sizes.
- Compact & Lightweight: Approximately 39.78 mm × 89.5 mm — fits easily in a shirt pocket or a tool pouch.
- Ready to Use: Comes packaged in a protective plastic bag for clean storage and easy portability.
Product Specifications
- Material: Stainless Steel
- Color: Silver
- Angle: 118°
- Measuring Range: 0–20 mm
- Dimensions: Approx. 39.78 mm × 89.5 mm
- Country of Origin: Made in China
What's in the Box?
- 1 × 118° Double-Sided Drill Gauge
If you enjoy hands-on workshop projects, you may also like the Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool or browse our 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers for more precision workshop essentials. For garden and pruning precision, check out our Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees.
Note: Screen calibration and lighting conditions may cause slight colour variation from product images. Please allow a small manual measurement tolerance (±1 mm).
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What type of drills is this 118° drill gauge compatible with?
A: This drill gauge is designed for standard 118° twist drill bits with a diameter of up to 50 mm. It covers a measuring range of 0–20 mm, making it suitable for the most commonly used drill bit sizes in woodworking, metalworking, and general DIY applications.
Q: How do I use the double-sided drill gauge to check a drill bit?
A: Simply place the drill bit tip into the corresponding slot or notch on the gauge that matches your desired drill diameter. The engraved diagrams on the tool illustrate exactly how to position the bit. One side checks the cutting-edge angle; the other checks the center (grinding) angle. If the drill point fits flush and symmetrically within the gauge, your grind is correct at 118°.
Q: Is this drill gauge suitable for use with a drill sharpening machine?
A: Yes — this gauge is the perfect companion to any bench grinder or drill sharpening device. After sharpening, use the gauge to verify that both cutting edges are symmetrical and ground to the correct 118° angle before returning the bit to service.
Q: Will the stainless steel gauge rust or warp over time?
A: The gauge is made from quality stainless steel, which offers excellent resistance to corrosion and bending. With normal workshop use and basic care (keep it dry and store in the included bag), it will maintain its accuracy and shape for years.
