10KHz–6GHz 20dB Low Noise RF Preamplifier Signal Booster

10KHz to 6GHz Low Noise RF Preamplifier — 20dB High Gain Signal Booster Module

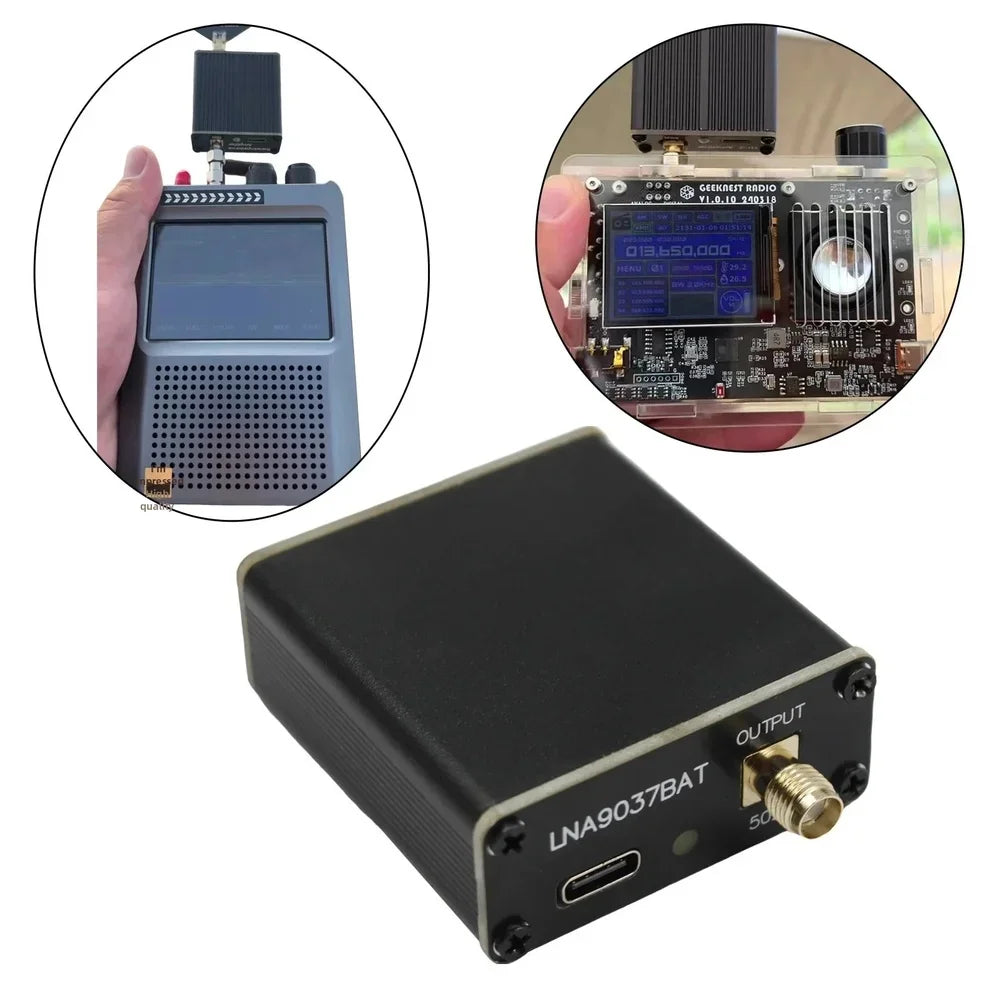

Take your RF signal chain to the next level with this wide-band, ultra-low-noise preamplifier module. Covering an impressive frequency range from 10KHz all the way to 6GHz, this compact metal-housed module delivers 20dB of high gain with an exceptionally low noise figure of just 0.4dB NF — making it ideal for SDR receivers, spectrum analyzers, antenna testing, amateur radio setups, and precision RF lab work.

Why Choose This RF Preamplifier?

• Ultra-Low Noise Figure (0.4dB NF): Maximizes sensitivity for weak-signal detection in both field and bench applications.
• Wide Frequency Coverage: Operates seamlessly from 10KHz to 6GHz, handling HF, VHF, UHF, and microwave bands in a single module.
• High Linearity & Gain: 20dB gain with a +35dBm output third-order intercept point ensures clean, distortion-free amplification even with strong adjacent signals.
• Robust Input Protection: Handles up to 22dBm continuous-wave input power without damage, protecting your module in demanding environments.
• Stable 50Ω Impedance: Standard 50-ohm input/output impedance for seamless integration with all common RF test equipment and setups.
• SMA Female Connector: Fits directly into existing RF chains without additional adapters — plug and measure instantly.
• Built-In 600mAh Battery: Powered by an onboard 600mAh battery with a 5V / 70mA supply, enabling truly portable field operations without a tethered power source.

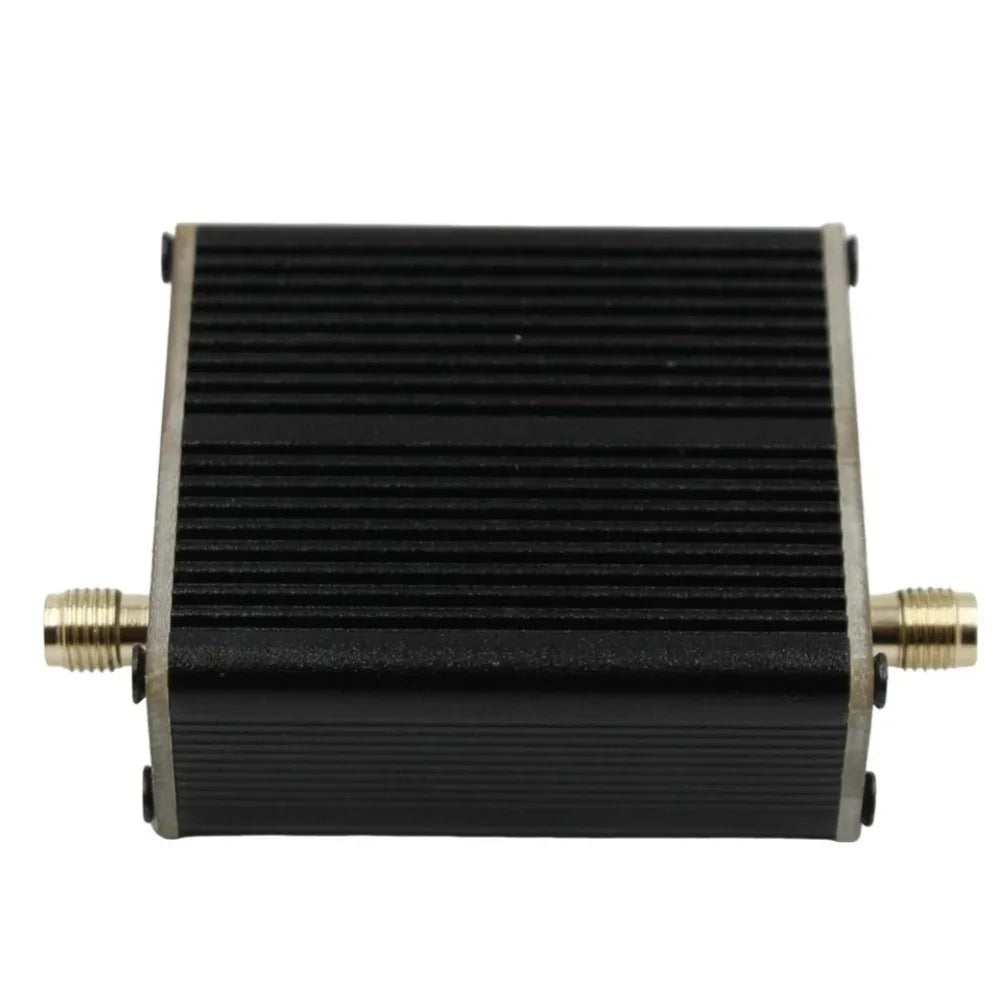

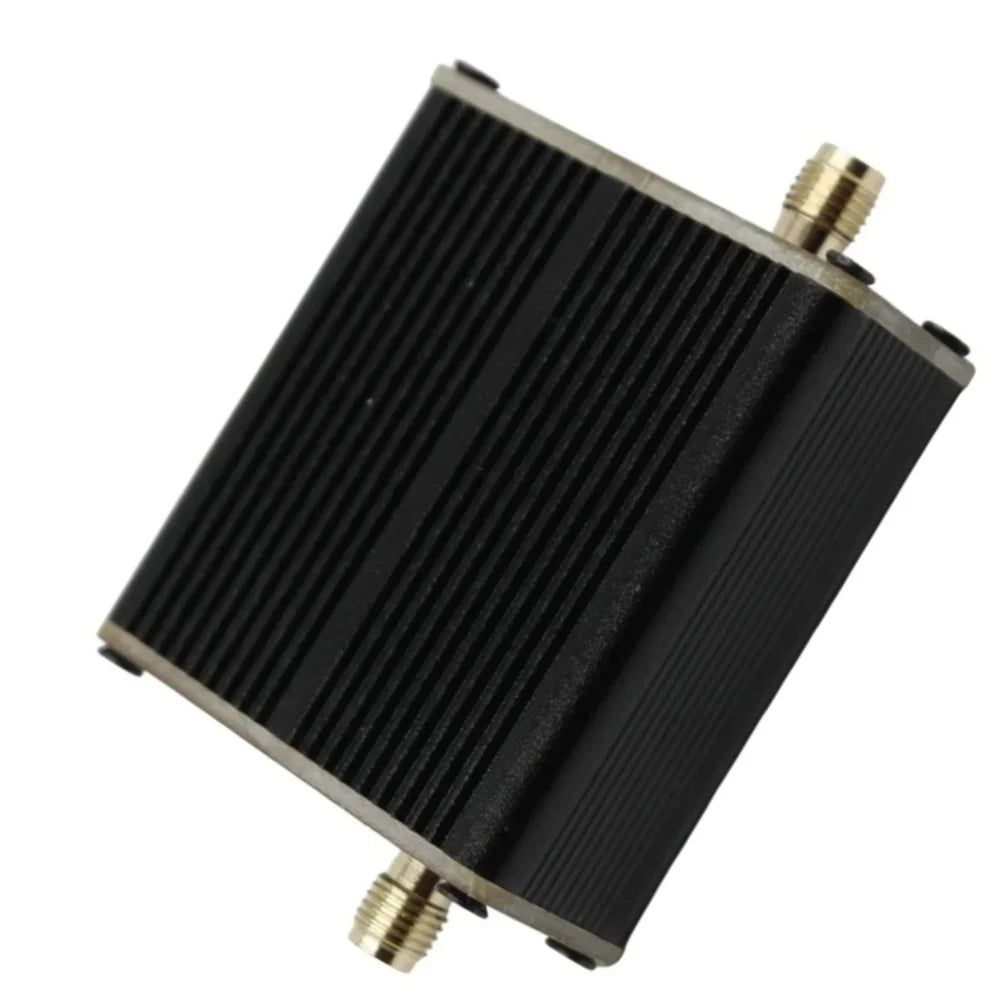

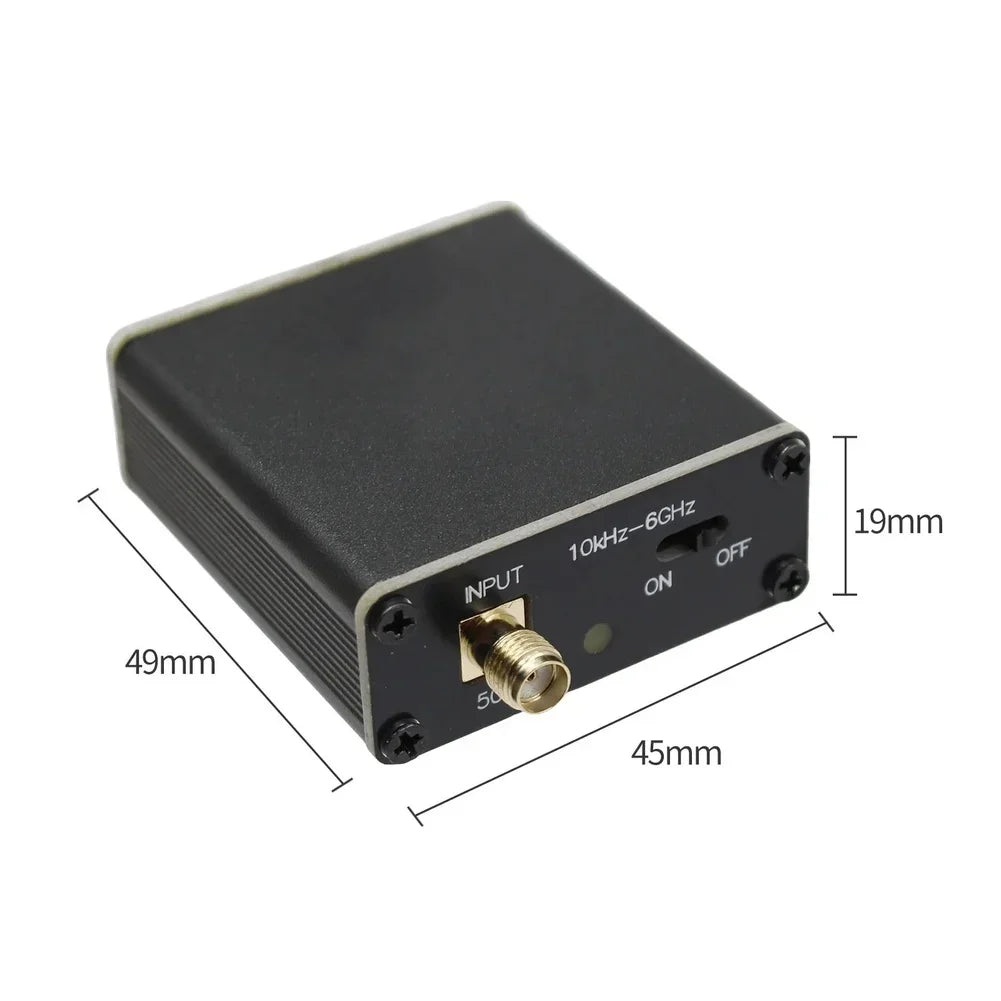

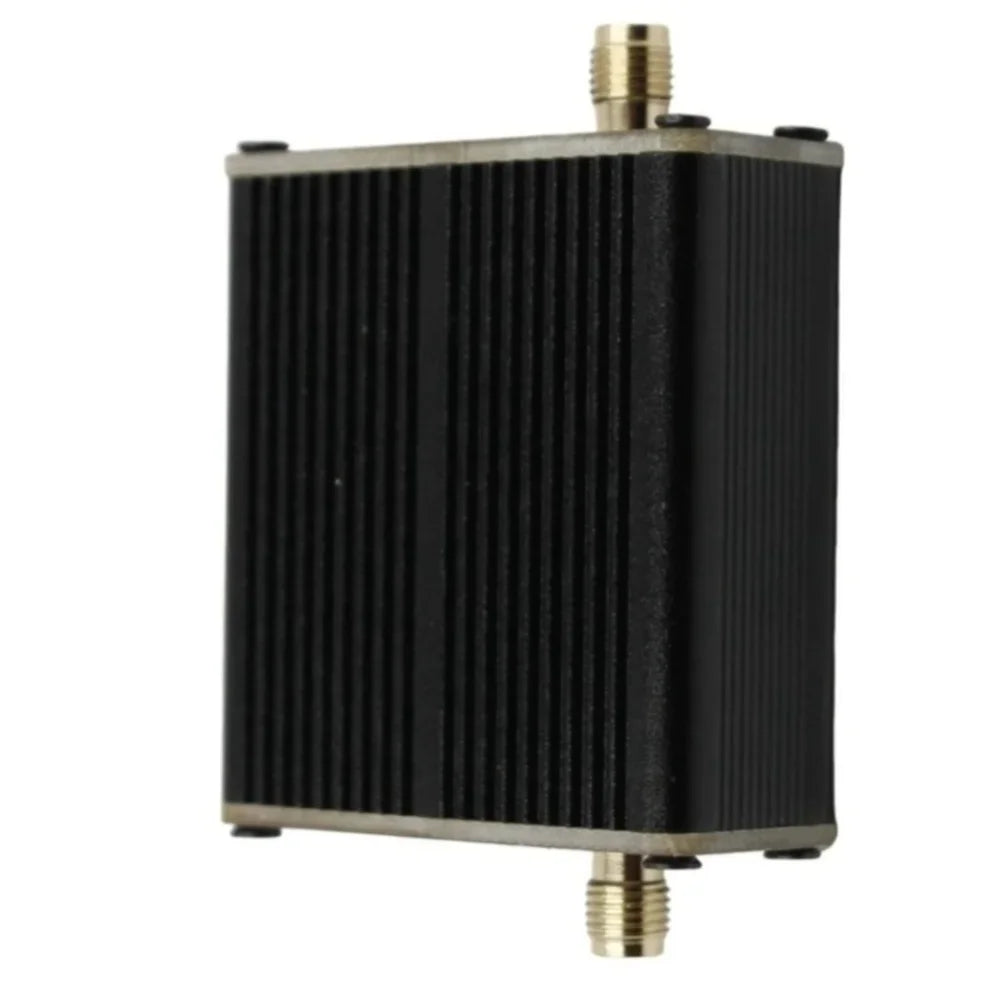

• Compact Metal Construction: Shielded metal enclosure (4.9 × 4.5 × 1.9 cm) minimizes interference and keeps your signal clean.

Technical Specifications

What's in the Box?

• 1× Low Noise RF Preamplifier Signal Booster Module

Perfect For

• Software-Defined Radio (SDR) reception enhancement
• Spectrum analyzer front-end boosting
• Amateur radio (ham radio) weak-signal work
• RF lab testing and signal chain verification
• Antenna range measurements and field surveys
• General-purpose RF research and development

If you enjoy hands-on electronics projects, you may also like the Electromagnetic Induction Tester – Coil & Circuit Fault Detector or the Air Compressor Pressure Gauge 0–25 Bar | DIY Tool for your workbench toolkit.

Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow minor measurement deviations (±1–2mm).

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What frequency range does this RF preamplifier module cover?

A: This low-noise RF preamplifier covers a wide frequency range from 10KHz to 6GHz, making it suitable for HF, VHF, UHF, and microwave applications including SDR receivers, spectrum analyzers, and amateur radio setups.

Q: Does the 20dB high gain RF preamplifier require an external power supply?

A: No external power supply is required for portable use — the module includes a built-in 600mAh rechargeable battery powered at 5V / 70mA, allowing extended field operation. It can also be powered via a standard 5V USB source when stationary.

Q: What connector type does this signal booster module use?

A: The module is equipped with an SMA female connector, which is the industry-standard interface for RF test equipment. This allows quick, tool-free integration into most existing RF setups without additional adapters.

Q: Is this RF preamplifier suitable for SDR (Software-Defined Radio) use?

A: Yes, absolutely. With its ultra-low 0.4dB noise figure and 20dB gain across the full 10KHz–6GHz band, this preamplifier is an excellent front-end booster for popular SDR dongles and receivers, significantly improving weak-signal sensitivity and overall reception quality.
