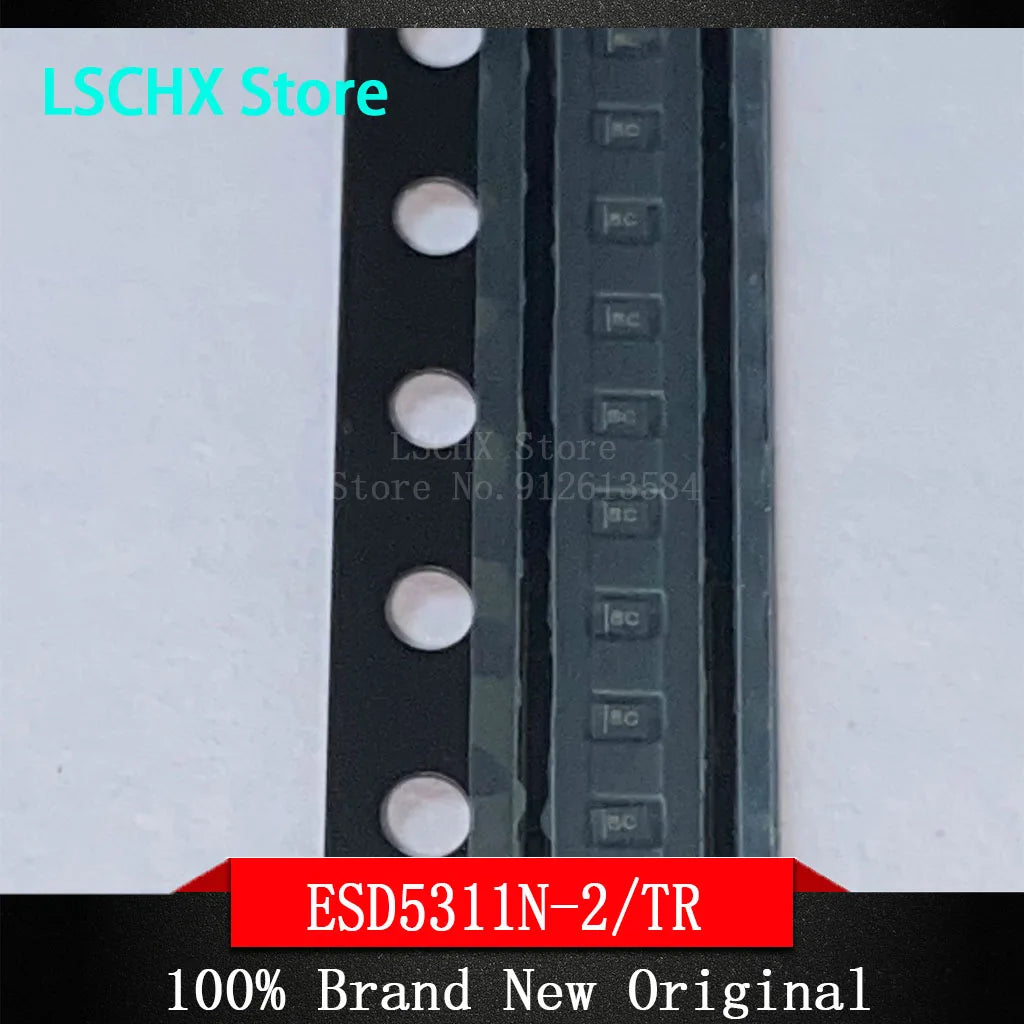

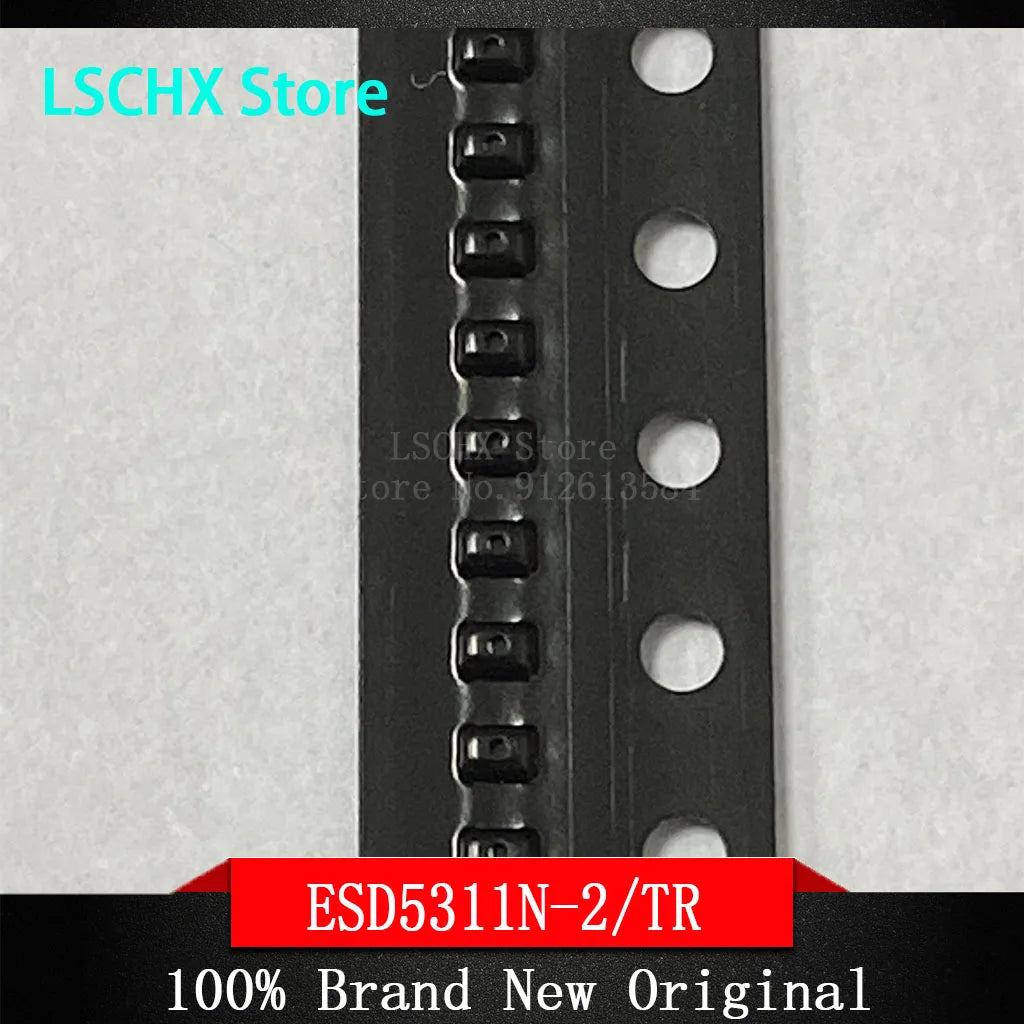

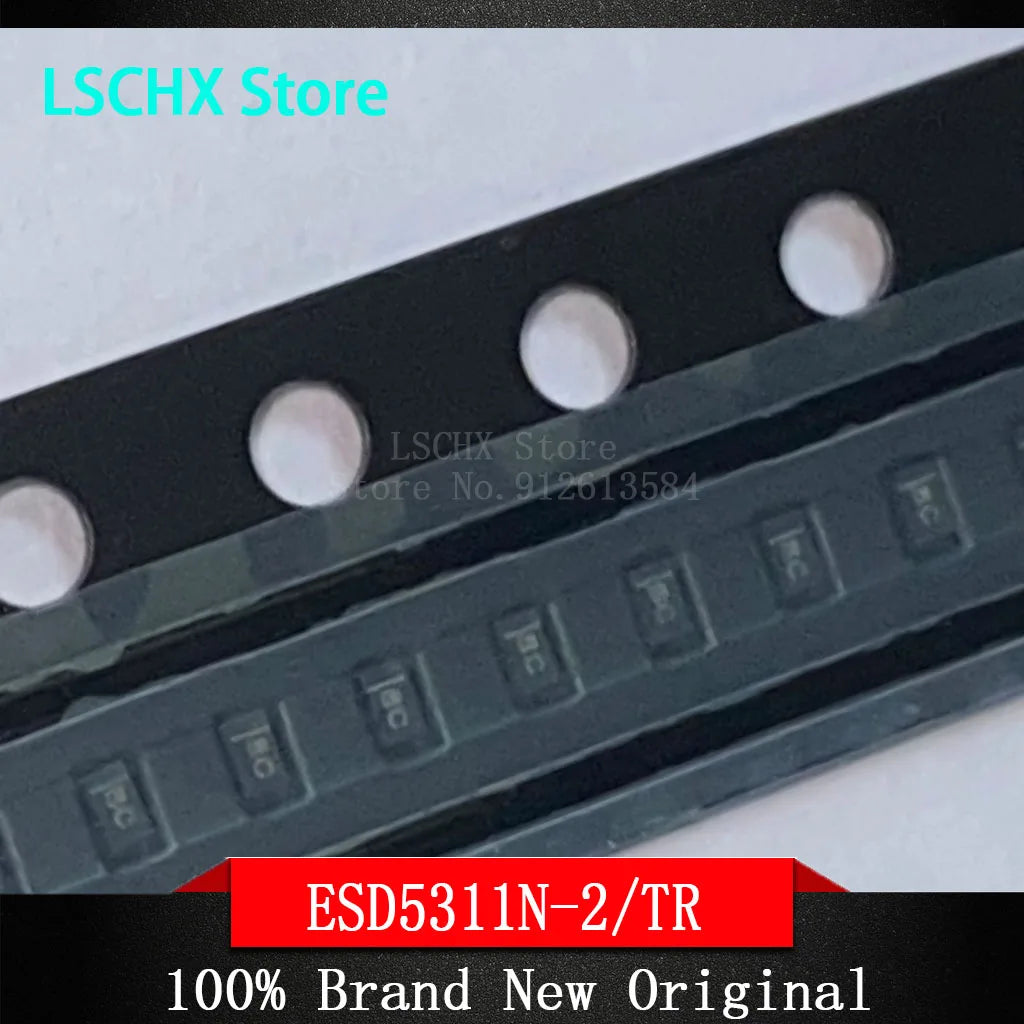

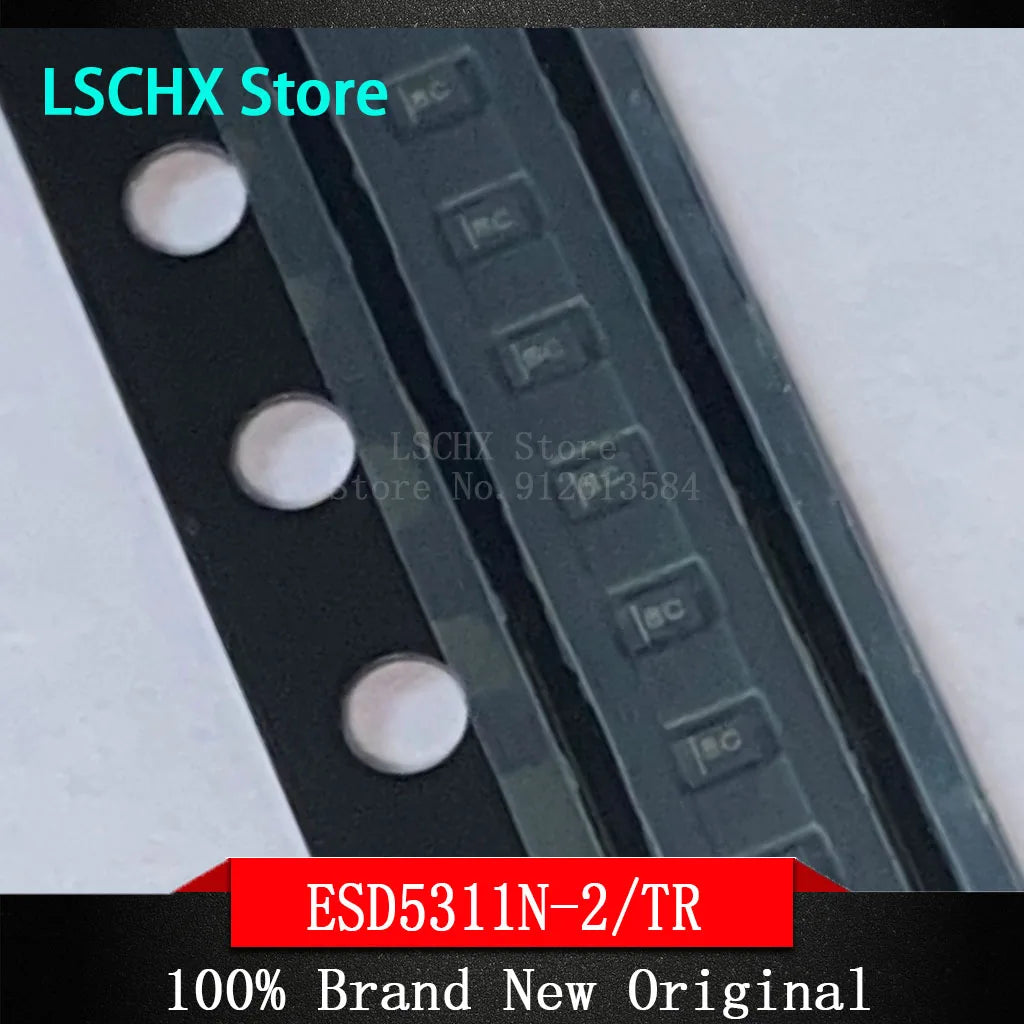

100 Pcs ESD5311N-2/TR DFN1006-2 Transient Voltage Suppressor TVS

ESD5311N-2/TR Transient Voltage Suppressor Diodes – 100-Piece Pack

Protect your sensitive electronics with this 100-piece pack of ESD5311N-2/TR Transient Voltage Suppressor (TVS) Diodes in the compact X1-DFN1006-2 package. Designed for general-purpose ESD protection, these surface-mount diodes clamp voltage spikes and transients before they can damage downstream components — ideal for circuit designers, engineers, and electronics hobbyists who need reliable bulk quantities.

Made in Mainland China.

Key Features

• Model: ESD5311N-2/TR
• Package: X1-DFN1006-2 (ultra-compact surface-mount)
• Quantity: 100 pieces per order
• Application: General-purpose ESD / transient voltage suppression
• Standards: Meets international standards for contact load, protect feature, and voltage rating
• Customizable: Available for customized orders

Why Choose These TVS Diodes?

• ✅ Reliable ESD Protection — Quickly clamps dangerous voltage transients, safeguarding ICs, microcontrollers, and other sensitive components
• ✅ Ultra-Compact Form Factor — DFN1006-2 package is perfect for space-constrained PCB designs
• ✅ Bulk Pack of 100 — Cost-effective for prototyping, production runs, and repair work
• ✅ Meets International Standards — Consistent performance across a wide range of applications

Ideal For

• PCB design and electronics manufacturing
• Consumer electronics repair and servicing
• Prototyping and R&D projects
• Signal line and data line ESD protection

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is an ESD5311N-2/TR TVS diode used for?

A: The ESD5311N-2/TR is a Transient Voltage Suppressor (TVS) diode used to protect electronic circuits from electrostatic discharge (ESD) and voltage transients. It clamps sudden voltage spikes on signal or power lines, preventing damage to sensitive downstream components such as microcontrollers, sensors, and ICs.

Q: What does the X1-DFN1006-2 package mean?

A: The DFN1006-2 (also referred to as X1-DFN1006-2) is an ultra-compact, 2-pin surface-mount package measuring approximately 1.0 mm × 0.6 mm. It is designed for high-density PCB layouts where board space is at a premium, making it popular in mobile, wearable, and miniaturized electronics applications.

Q: How many diodes are included in this listing?

A: This listing includes 100 pieces of the ESD5311N-2/TR diode in the X1-DFN1006-2 package — ideal for bulk prototyping, small production runs, or stocking up your component inventory.

Q: Are these diodes suitable for surface-mount (SMD) assembly?

A: Yes. The X1-DFN1006-2 package is a surface-mount device (SMD), compatible with standard SMT reflow soldering processes and pick-and-place assembly equipment.
