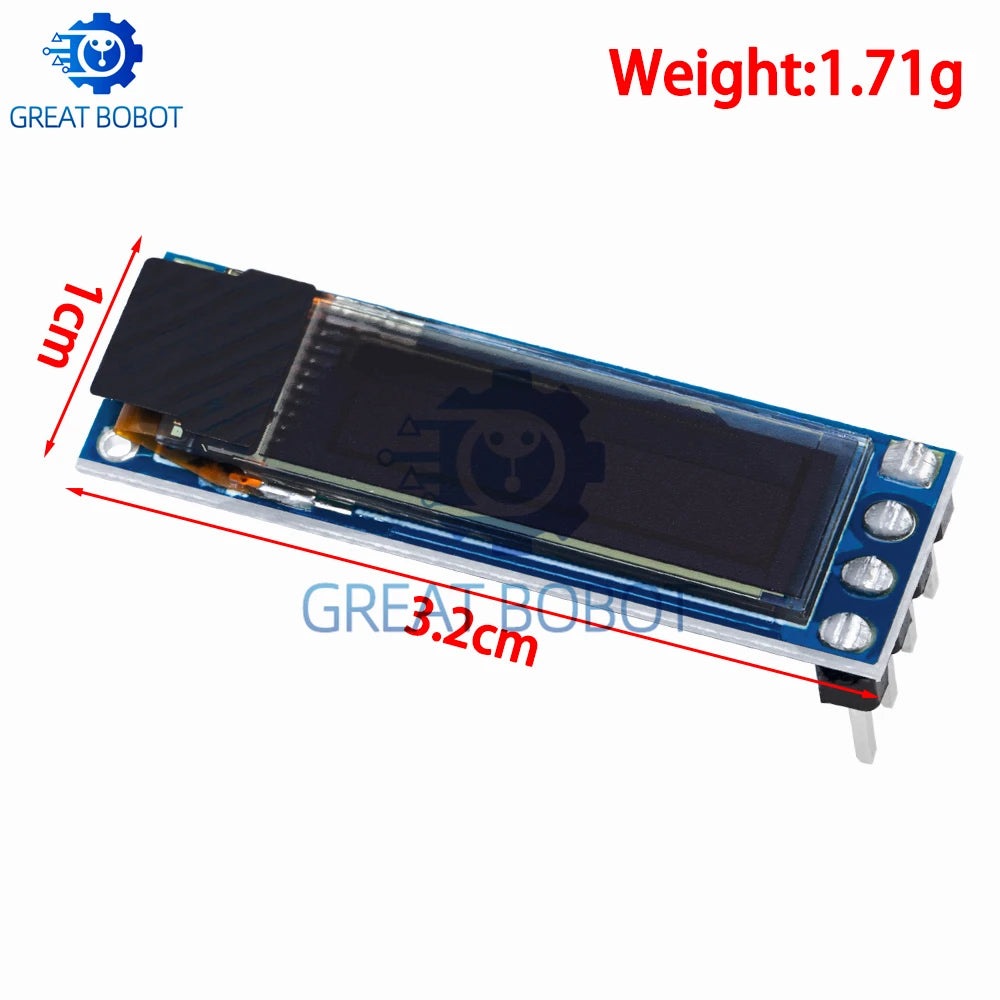

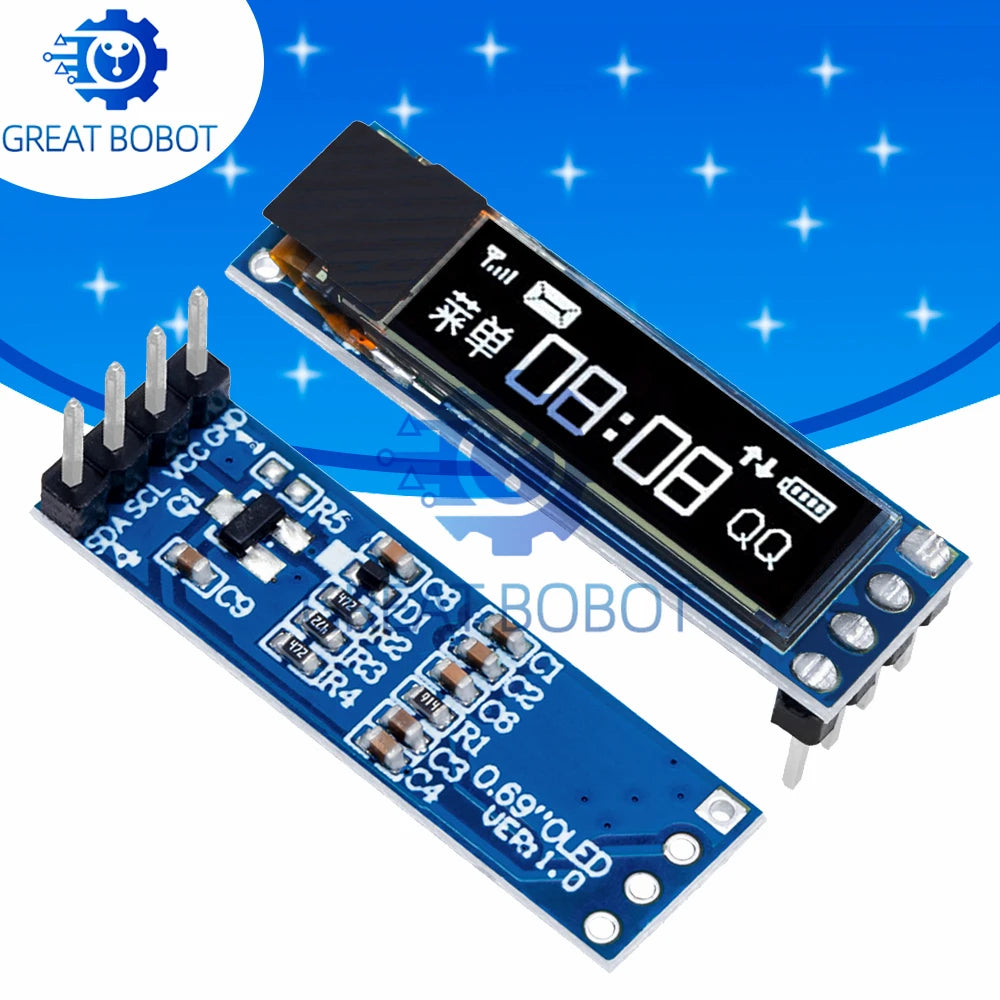

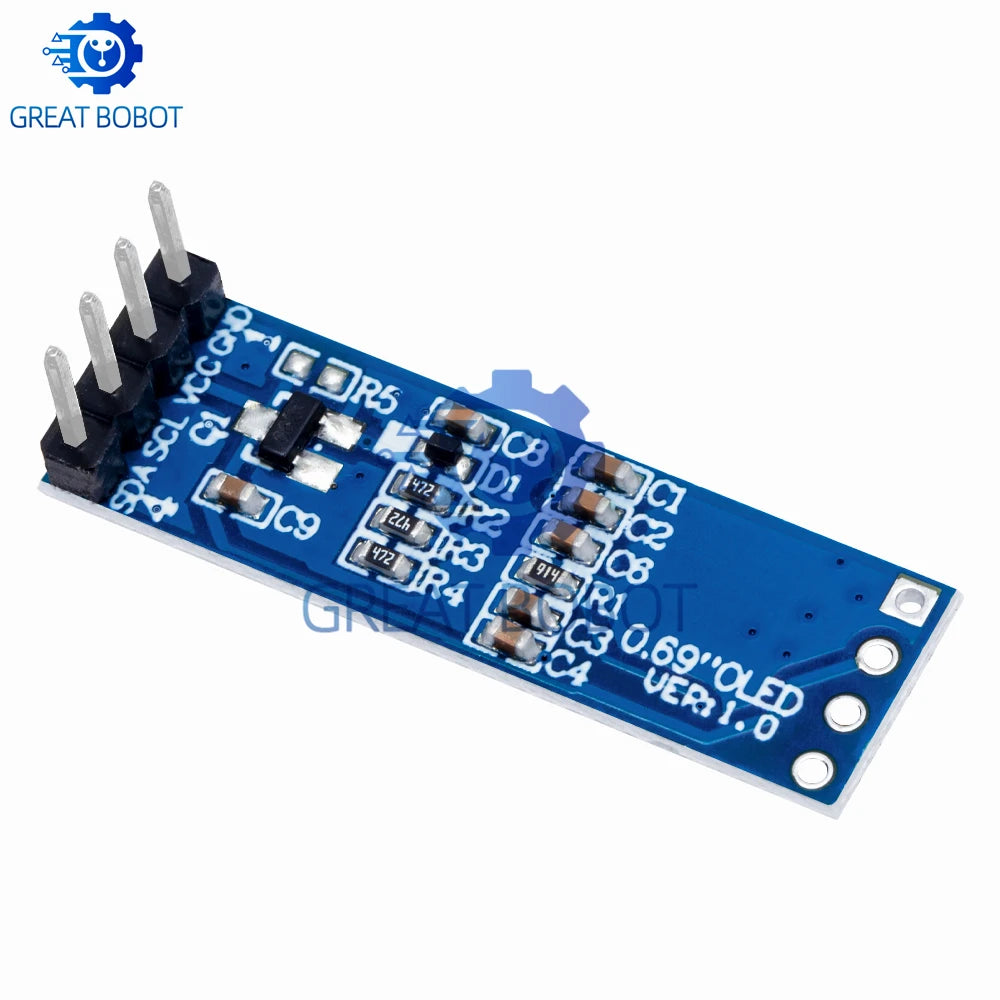

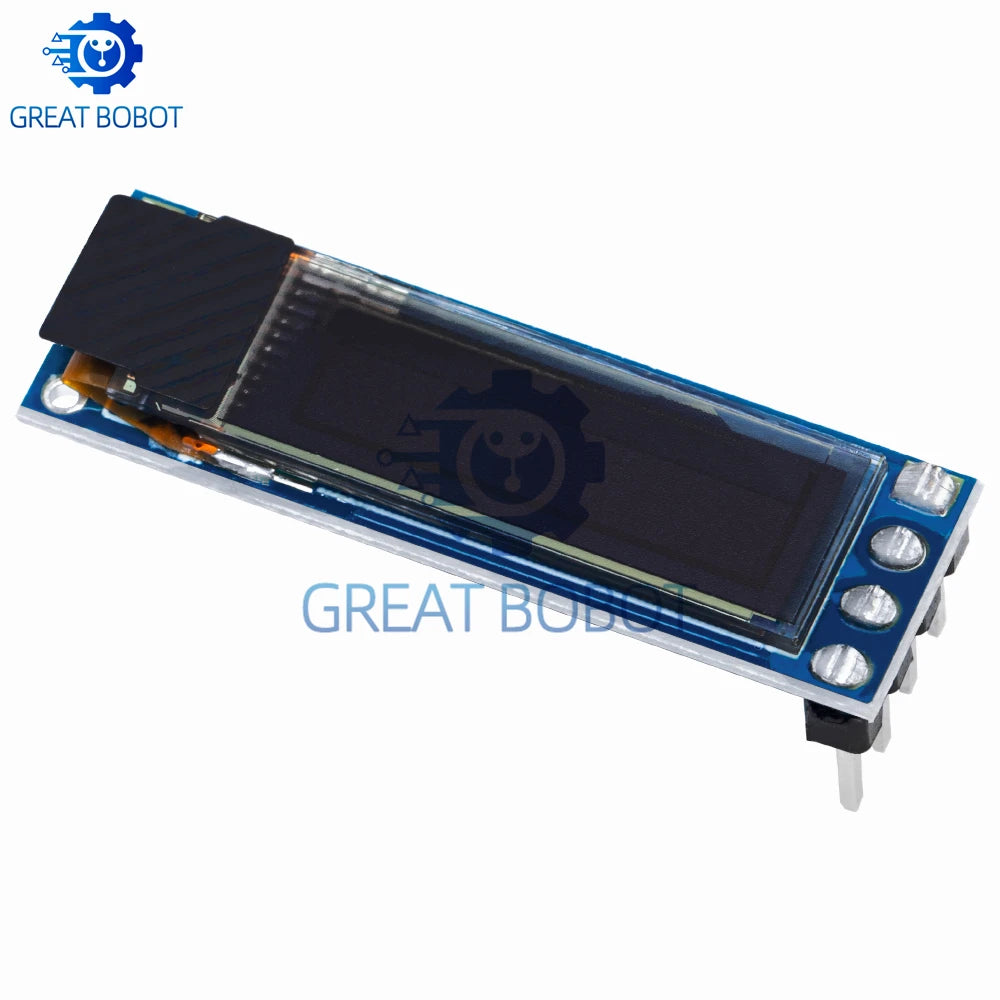

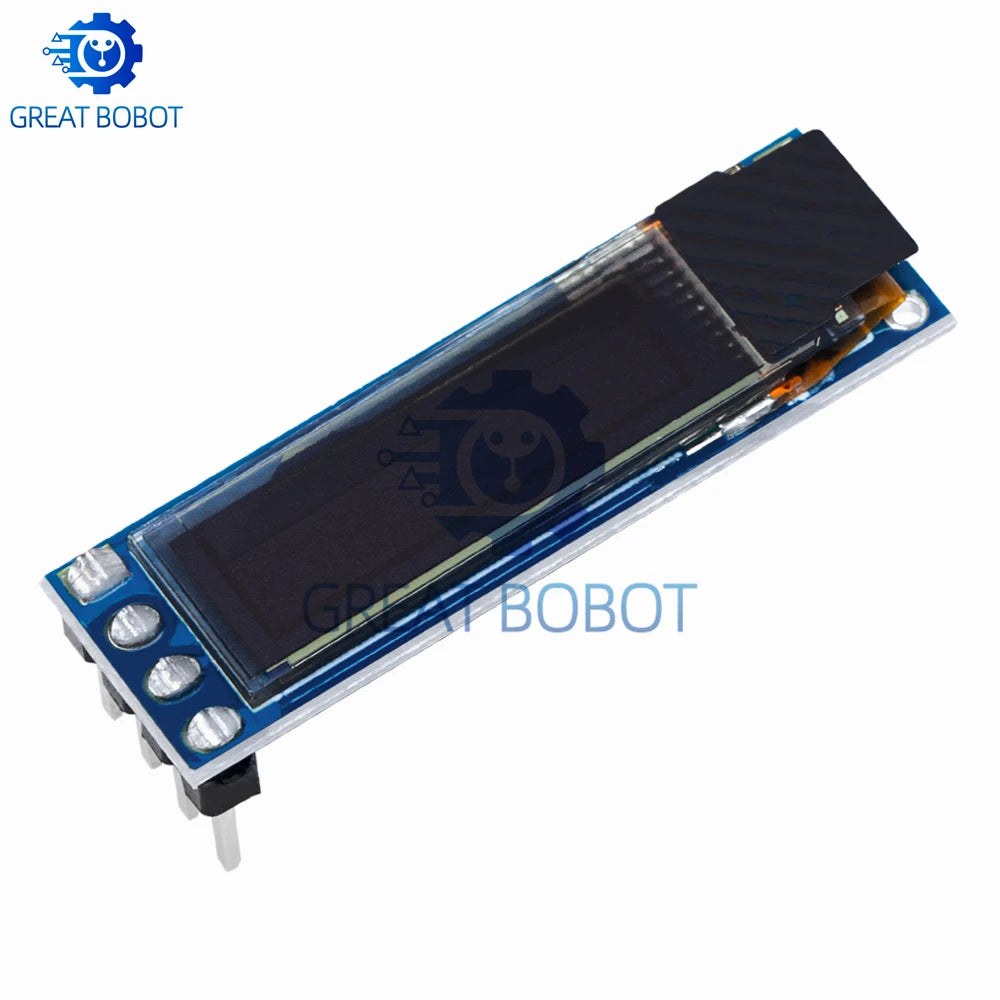

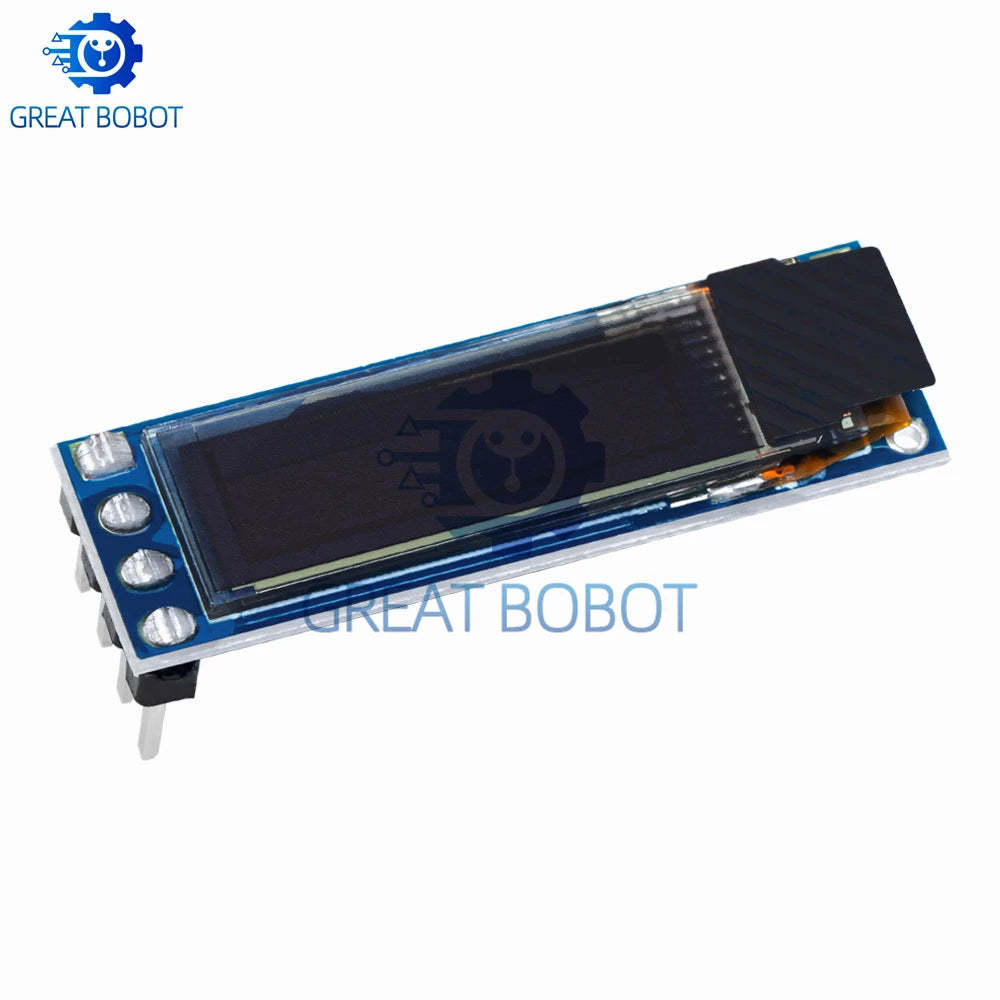

0.69" OLED Display Module – 96×16 White, SSD1306, IIC Interface
Add a compact, crisp white OLED display to your next electronics project. This 0.69-inch OLED module uses the reliable SSD1306 driver chip and communicates over a simple I²C (IIC) interface, making it easy to integrate with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontroller platforms. Its ultra-low power consumption and wide supply voltage range (3V – 5.5V) make it an ideal choice for both battery-powered and USB-powered builds.
Key Features
- Screen Size: 0.69 inches (diagonal)
- Resolution: 96 × 16 pixels, bright white display
- Driver IC: SSD1306
- Interface: I²C (IIC) — only 2 data lines needed (SDA + SCL)
- Operating Voltage: 3V – 5.5V DC — 3.3V and 5V compatible
- Display Technology: OLED — no backlight required, high contrast in any lighting
- Wide Compatibility: Arduino UNO, Nano, Mega, ESP8266, ESP32, STM32, and more
- Ultra-Low Power: Ideal for portable and battery-operated applications
- High Contrast: Vivid white pixels on a true black background
- No High-Concern Chemicals: RoHS-compliant materials
Technical Specifications
| Model | 0.69 inch 96×16 OLED |
| Driver Chip | SSD1306 |
| Resolution | 96 × 16 pixels |
| Color | White |
| Interface | I²C / IIC |
| Supply Voltage | 3V – 5.5V |
| Country of Origin | Made in Mainland China |
Perfect For
- DIY Arduino and microcontroller projects
- Wearable electronics and compact gadgets
- Sensor readout displays (temperature, humidity, speed, etc.)
- Status indicators for IoT devices
- Prototyping and maker projects
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this OLED display module compatible with Arduino?
A: Yes! The 0.69" SSD1306 OLED module is fully compatible with Arduino UNO, Nano, Mega, and most other Arduino boards. It uses the I²C (IIC) interface, so you only need two data lines (SDA and SCL) plus power and ground. Popular libraries such as Adafruit SSD1306 and U8g2 support this module out of the box.
Q: What voltage does this OLED module require?
A: This module operates on a wide supply voltage range of 3V to 5.5V DC, making it compatible with both 3.3V systems (ESP8266, ESP32, Raspberry Pi) and 5V systems (Arduino UNO, Nano, Mega) without any additional level-shifting components.
Q: What is the resolution of this 0.69" OLED display?
A: The display has a resolution of 96 × 16 pixels. It is optimized for displaying short text strings, icons, or simple graphics — perfect for status readouts and compact HUD-style displays in DIY electronics projects.
Q: Does the OLED module work without a backlight?
A: Yes. OLED technology is self-emissive — each pixel produces its own light, so no backlight is needed. This results in true black backgrounds, high contrast, and very low power consumption compared to traditional LCD modules.
